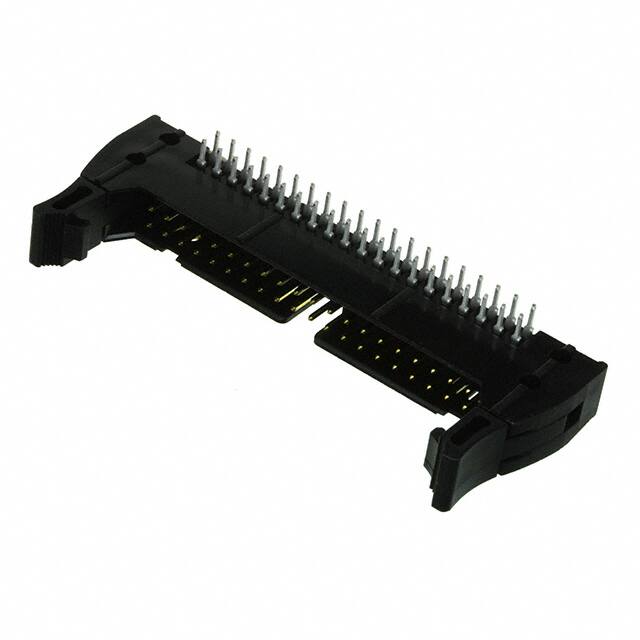

XG4A-4034

Teknik Özellikler

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Özellikler

Keying Slot, Mounting Flange

Fastening Type

Latch Lock/Eject Hooks, Long

Radyasyon Dayanımı

No

Terminal

Solder

Contact Finish Thickness Mating

5.90μin 0.150μm

Pitch Mating

0.100 2.54mm

JESD-609 Kodu

e3

Montaj

Through Hole

Contact Resistance

20mOhm

Din Conformance

NO

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~105°C

Insulation Height

0.335 8.51mm

Row Spacing Mating

0.100 (2.54mm)

Style

Board to Cable/Wire

Number Of Positions Loaded

All

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

Yayın Yılı

2002

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Additional Feature

STANDARD: MIL-C-83503, POLARIZED

Reach Svhc

No SVHC

Insulation Resistance

1GOhm

Ul Flammability Code

94V-0

Shrouding

Shrouded - 4 Wall

Option

GENERAL PURPOSE

Connector Type

Header

Filter Feature

NO

Sıra Sayısı

2

Pozisyon Sayısı

40

Depth

27mm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Contact Length Post

0.126 3.20mm

Mil Conformance

YES

Housing Material

Polybutylene
