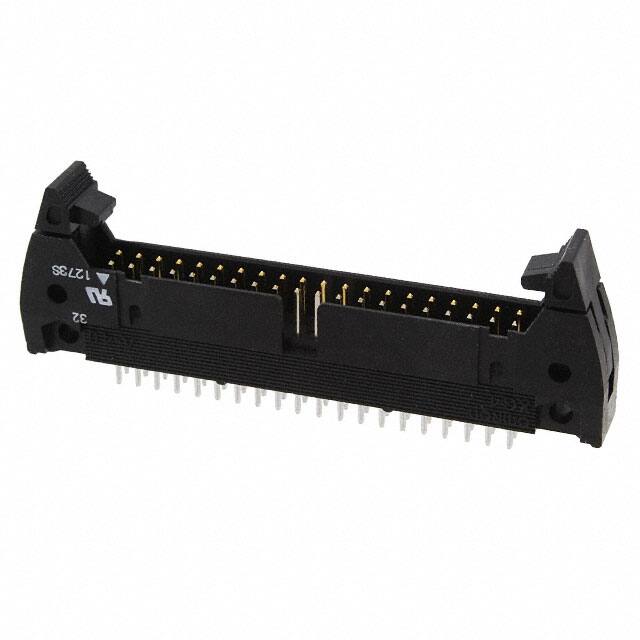

XG4A-4032

Teknik Özellikler

Parça Durumu

Active

Contact Type

Male Pin

Insulation Resistance

1GOhm

Contact Finish Mating

Gold

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Overall Contact Length

0.657 16.70mm

ECCN Kodu

EAR99

Row Spacing Mating

0.100 (2.54mm)

Seri

XG4

Insulation Height

0.669 17.00mm

Montaj Tipi

Through Hole

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Yayın Yılı

2002

Fabrika Tedarik Süresi

9 Weeks

Contact Materials

Brass, Nickel

Contact Finish Post

Tin

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Stack Height Mating

23.5mm

Housing Material

PBT

Contact Finish Thickness Mating

5.90μin 0.150μm

Contact Resistance

20mOhm

Montaj

Through Hole

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Contact Shape

Square

Orientation

Straight

Ambalaj

Bulk

Insulation Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Pozisyon Sayısı

40

Sıra Sayısı

2

Max Current Rating

3A

Contact Finish Thickness Post

78.7μin 2.00μm
