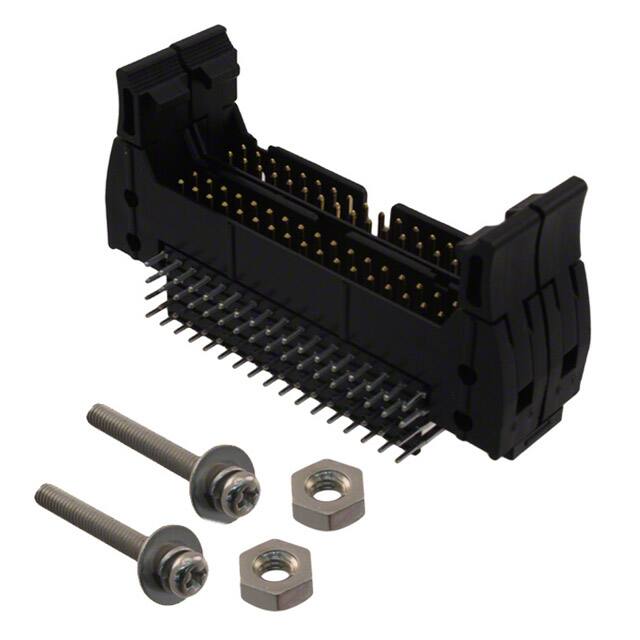

XG4A-3439-A

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~105°C

Housing Color

Black

Contact Shape

Square

Orientation

Right Angle

Ambalaj

Tray

Pitch Mating

0.100 2.54mm

JESD-609 Kodu

e3

Contact Resistance

20mOhm

Montaj

Through Hole

Contact Finish Thickness Mating

5.90μin 0.150μm

Uzunluk

62.5mm

Housing Material

Polybutylene

Terminal

Solder

Number Of Contacts

68

Fastening Type

Latch Lock/Eject Hooks, Long

Radyasyon Dayanımı

No

Özellikler

Keying Slot, Mounting Flange, Mounting Hardware

Contact Gender

Male

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Sıra Sayısı

2

Pozisyon Sayısı

34, 34

Depth

1.3mm

Connector Type

Header, Stackable (2)

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Gold

Reach Svhc

Unknown

Contact Type

Male Pin

Parça Durumu

Active

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

Fabrika Tedarik Süresi

7 Weeks

Yayın Yılı

2002

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire
