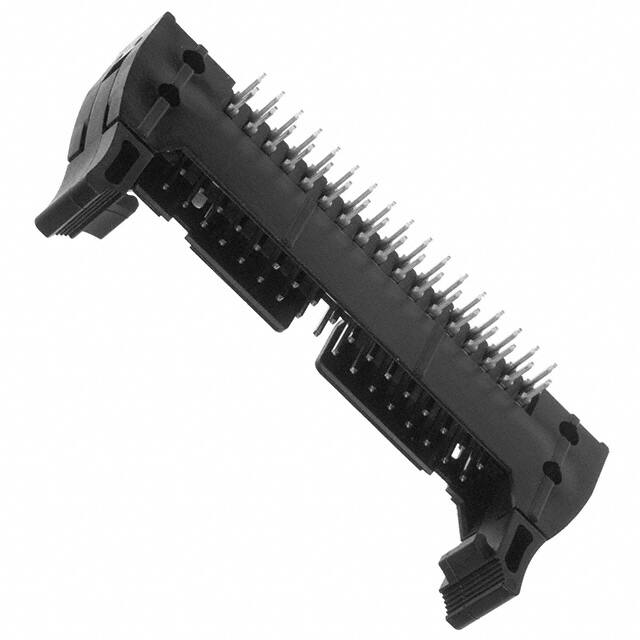

XG4A-3434

Teknik Özellikler

Housing Material

PBT

Contact Finish Thickness Mating

5.90μin 0.150μm

Pitch Mating

0.100 2.54mm

Montaj

Through Hole

Contact Resistance

20mOhm

JESD-609 Kodu

e3

Contact Shape

Square

Ambalaj

Tray

Orientation

Right Angle

Insulation Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Sıra Sayısı

2

Max Current Rating

3A

Contact Finish Thickness Post

78.7μin 2.00μm

Pozisyon Sayısı

34

Contact Gender

Male

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Özellikler

Keying Slot, Mounting Flange

Kurşunsuz

Lead Free

Contact Length Post

0.126 3.20mm

Fastening Type

Latch Lock/Eject Hooks, Long

Radyasyon Dayanımı

No

Terminal

Solder

Parça Durumu

Active

Insulation

Non-Insulated

Contact Type

Male Pin

Reach Svhc

No SVHC

Contact Finish Mating

Gold

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Insulation Height

0.335 8.51mm

Row Spacing Mating

0.100 (2.54mm)

Seri

XG4

Montaj Tipi

Through Hole, Right Angle

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Number Of Positions Loaded

All
