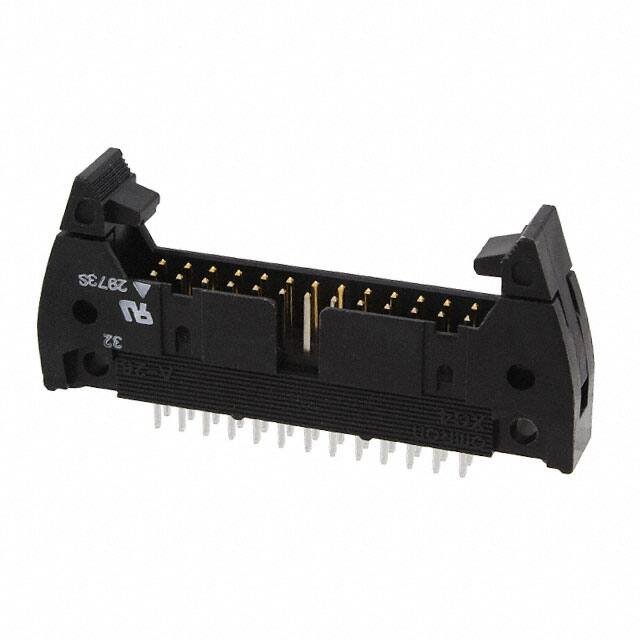

XG4A-3432

Teknik Özellikler

Özellikler

Keying Slot, Mounting Flange

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Sıra Sayısı

2

Pozisyon Sayısı

34

Terminal

Solder

Fastening Type

Latch Lock/Eject Hooks, Short

Radyasyon Dayanımı

No

Contact Length Post

0.126 3.20mm

Pitch Mating

0.100 2.54mm

JESD-609 Kodu

e3

Contact Resistance

20mOhm

Montaj

Through Hole

Contact Finish Thickness Mating

5.90μin 0.150μm

Stack Height Mating

23.5mm

Çalışma Sıcaklığı

-55°C~105°C

Insulation Color

Black

Contact Shape

Square

Orientation

Straight

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole

Insulation Height

0.669 17.00mm

Seri

XG4

Row Spacing Mating

0.100 (2.54mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

Fabrika Tedarik Süresi

9 Weeks

Yayın Yılı

2002

Number Of Positions Loaded

All

Contact Finish Mating

Gold

Insulation Resistance

1GOhm

Contact Type

Male Pin
