Adet bazlı fiyat
- 1+ adet$0.87
- 10+ adet$0.82
- 100+ adet$0.77
- 500+ adet$0.73
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

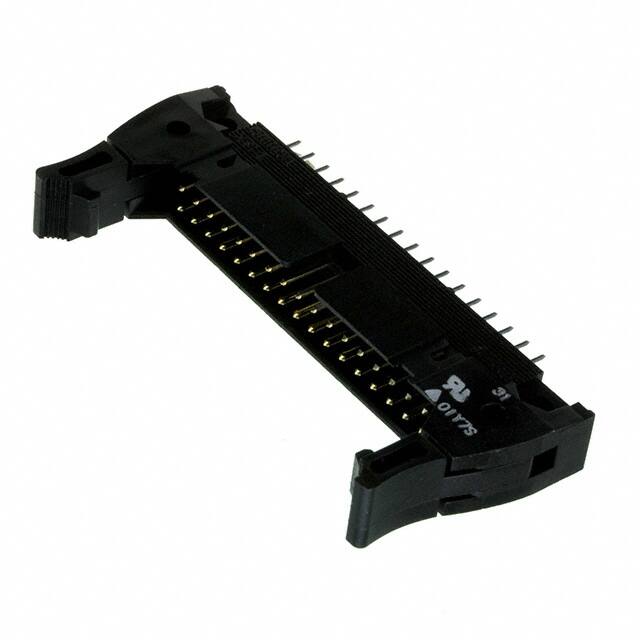

Teknik Özellikler
- Style
- Board to Cable/Wire
- Material Flammability Rating
- UL94 V-0
- RoHS Durumu
- RoHS Compliant
- Max Voltage Rating Ac
- 300V
- Montaj Tipi
- Through Hole
- Seri
- XG4
- Row Spacing Mating
- 0.100 (2.54mm)
- Insulation Height
- 0.669 17.00mm
- Akım Değeri
- 3A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Yayın Yılı
- 2002
- Contact Finish Post
- Tin
- Contact Materials
- Brass, Nickel
- Fabrika Tedarik Süresi
- 10 Weeks
- Number Of Positions Loaded
- All
- Contact Finish Mating
- Gold
- Reach Svhc
- No SVHC
- Contact Type
- Male Pin
- Parça Durumu
- Active
- Overall Contact Length
- 0.657 16.70mm
- Connector Type
- Header
- Shrouding
- Shrouded - 4 Wall
- Contact Lengthmating
- 0.240 6.10mm
- Özellikler
- Keying Slot, Mounting Flange
- Insulation Materials
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Gender
- Male
- Pozisyon Sayısı
- 34
- Depth
- 8.5mm
- Contact Finish Thickness Post
- 78.7μin 2.00μm
- Max Current Rating
- 3A
- Sıra Sayısı
- 2
- Terminal
- Solder
- Radyasyon Dayanımı
- No
- Fastening Type
- Latch Lock/Eject Hooks, Long
- Contact Length Post
- 0.126 3.20mm
- JESD-609 Kodu
- e3
- Contact Resistance
- 20mOhm
- Montaj
- Through Hole
- Pitch Mating
- 0.100 2.54mm
- Contact Finish Thickness Mating
- 5.90μin 0.150μm
