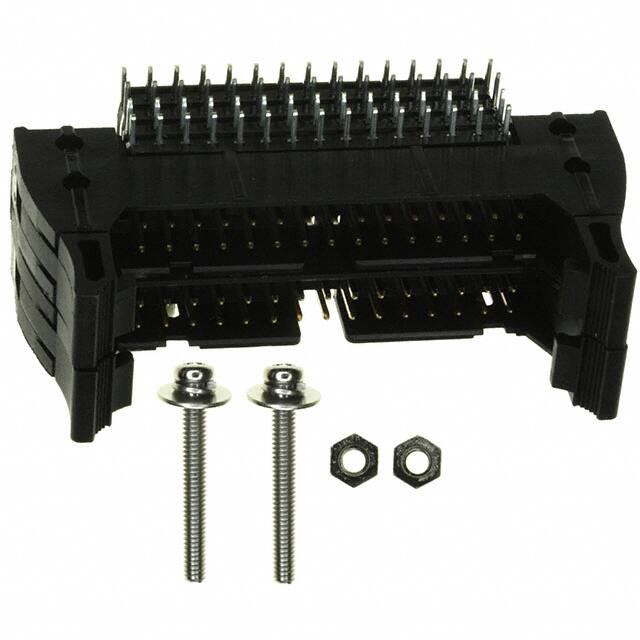

XG4A-3039-A

Teknik Özellikler

ECCN Kodu

EAR99

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Connector Type

Header, Stackable (2)

Insulation Resistance

1GOhm

Contact Finish Mating

Gold

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Reach Svhc

Unknown

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Number Of Positions Loaded

All

Yayın Yılı

2002

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

Fabrika Tedarik Süresi

15 Weeks

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Seri

XG4

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.669 17.00mm

Montaj Tipi

Through Hole, Right Angle

Insulation Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Contact Shape

Square

Orientation

Right Angle

Ambalaj

Tray

Contact Finish Thickness Mating

5.90μin 0.150μm

JESD-609 Kodu

e3

Contact Resistance

20mOhm

Montaj

Through Hole

Pitch Mating

0.100 2.54mm

Housing Material

PBT

Number Of Contacts

60

Terminal

Solder

Radyasyon Dayanımı

No

Fastening Type

Latch Lock/Eject Hooks, Long
