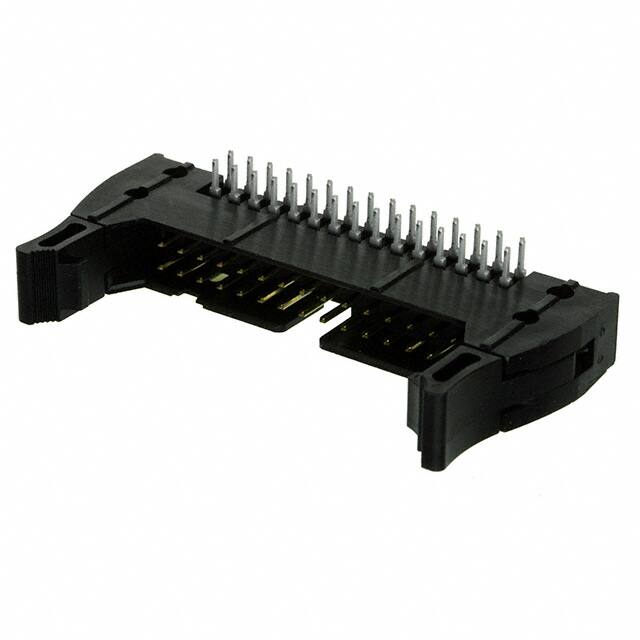

XG4A-3034

Teknik Özellikler

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2002

Fabrika Tedarik Süresi

11 Weeks

Contact Materials

Brass, Nickel

Contact Finish Post

Tin

Number Of Positions Loaded

All

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Montaj Tipi

Through Hole, Right Angle

Row Spacing Mating

0.100 (2.54mm)

Seri

XG4

Insulation Height

0.335 8.51mm

ECCN Kodu

EAR99

Connector Type

Header

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Insulation Resistance

1GOhm

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Contact Type

Male Pin

Reach Svhc

No SVHC

Parça Durumu

Active

Terminal

Solder

Radyasyon Dayanımı

No

Fastening Type

Latch Lock/Eject Hooks, Long

Contact Length Post

0.126 3.20mm

Contact Gender

Male

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Özellikler

Keying Slot, Mounting Flange

Pozisyon Sayısı

30

Sıra Sayısı

2

Max Current Rating

3A

Contact Finish Thickness Post

78.7μin 2.00μm

Çalışma Sıcaklığı

-55°C~105°C

Insulation Color

Black

Contact Shape

Square

Orientation

Right Angle
