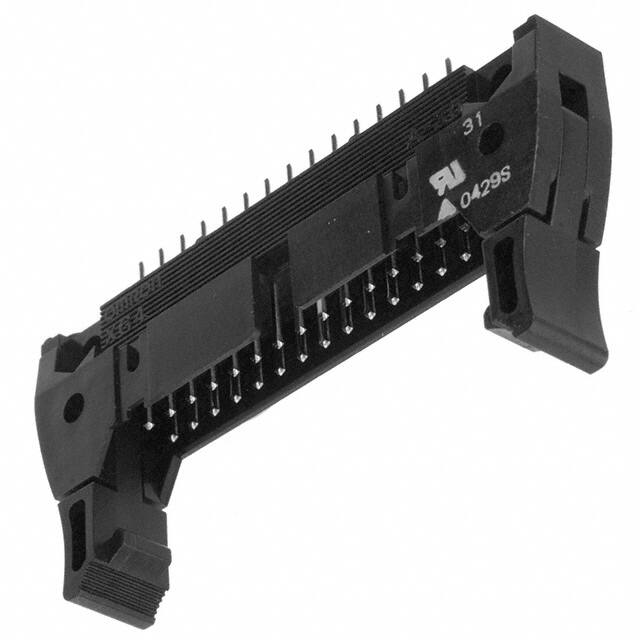

XG4A-3031

Teknik Özellikler

Style

Board to Cable/Wire

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.669 17.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Number Of Positions Loaded

All

Yayın Yılı

2002

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

HTS Kodu

8536.69.40.40

Insulation Resistance

1GOhm

Reach Svhc

Unknown

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Özellikler

Keying Slot, Mounting Flange

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Terminal

Solder

Radyasyon Dayanımı

No

Fastening Type

Latch Lock/Eject Hooks, Long

Contact Finish Thickness Mating

5.90μin 0.150μm

Lead Pitch

1.27mm

Contact Resistance

20mOhm

Montaj

Through Hole

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Stack Height Mating

23.5mm

Insulation Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Ambalaj

Tray

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Material Flammability Rating

UL94 V-0

Seri

XG4

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

9 Weeks

Contact Finish Mating

Gold

Parça Durumu

Active

Contact Type

Male Pin

Overall Contact Length

0.657 16.70mm
