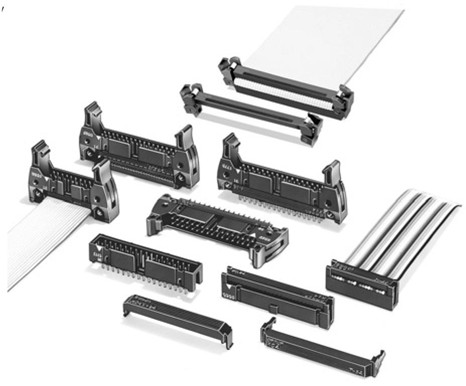

XG4A-2635

Teknik Özellikler

Insulation Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Contact Shape

Square

Orientation

Right Angle

Ambalaj

Bulk

Contact Finish Thickness Mating

5.90μin 0.150μm

JESD-609 Kodu

e3

Contact Resistance

20mOhm

Montaj

Through Hole

Pitch Mating

0.100 2.54mm

Housing Material

PBT

Terminal

Solder

Contact Length Post

0.126 3.20mm

Radyasyon Dayanımı

No

Fastening Type

Latch Lock/Eject Hooks, Short

Özellikler

Keying Slot, Mounting Flange

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Pozisyon Sayısı

26

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Sıra Sayısı

2

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Connector Type

Header

Insulation Resistance

1GOhm

Contact Finish Mating

Gold

Parça Durumu

Active

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Number Of Positions Loaded

All

Yayın Yılı

2002

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

Fabrika Tedarik Süresi

8 Weeks

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0
