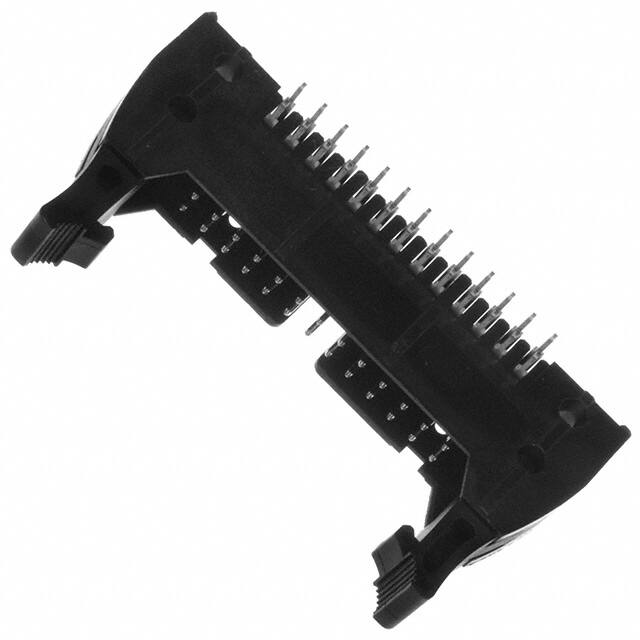

XG4A-2634

Teknik Özellikler

Row Spacing Mating

0.100 (2.54mm)

Seri

XG4

Insulation Height

0.335 8.51mm

Montaj Tipi

Through Hole, Right Angle

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Yayın Yılı

2002

Fabrika Tedarik Süresi

7 Weeks

Contact Materials

Brass, Nickel

Contact Finish Post

Tin

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Contact Type

Male Pin

Reach Svhc

No SVHC

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Connector Type

Header

ECCN Kodu

EAR99

Pozisyon Sayısı

26

Sıra Sayısı

2

Max Current Rating

3A

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Gender

Male

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Özellikler

Keying Slot, Mounting Flange

Contact Length Post

0.126 3.20mm

Radyasyon Dayanımı

No

Fastening Type

Latch Lock/Eject Hooks, Long

Terminal

Solder

Housing Material

PBT

Contact Finish Thickness Mating

5.90μin 0.150μm

Contact Resistance

20mOhm

Montaj

Through Hole

JESD-609 Kodu

e3
