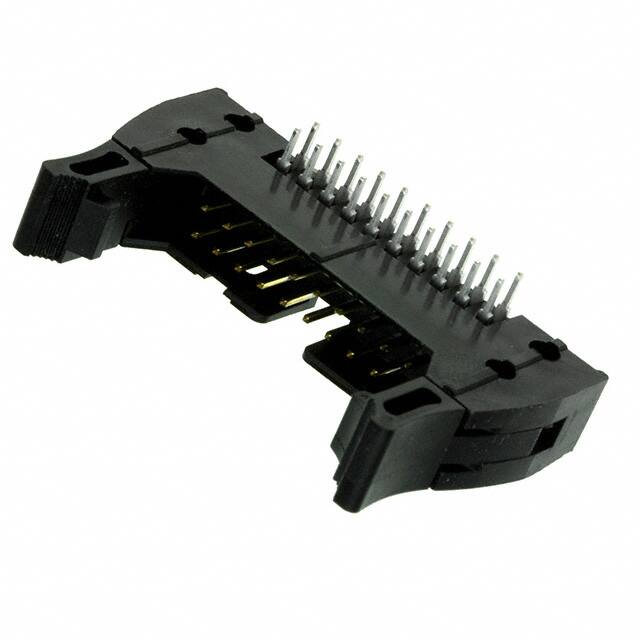

XG4A-2034

Teknik Özellikler

Number Of Positions Loaded

All

Yayın Yılı

2002

Contact Materials

Brass, Nickel

Contact Finish Post

Tin

Fabrika Tedarik Süresi

8 Weeks

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

XG4

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.335 8.51mm

Montaj Tipi

Through Hole, Right Angle

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Connector Type

Header

Parça Durumu

Active

Reach Svhc

No SVHC

Contact Type

Male Pin

Contact Finish Mating

Gold

REACH Uyumluluk Kodu

unknown

Contact Length Post

0.126 3.20mm

Fastening Type

Latch Lock/Eject Hooks, Long

Terminal

Solder

Pozisyon Sayısı

20

Depth

27mm

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Sıra Sayısı

2

Özellikler

Keying Slot, Mounting Flange

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Contact Shape

Square

Orientation

Right Angle

Ambalaj

Tray

Housing Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Housing Material

Polybutylene
