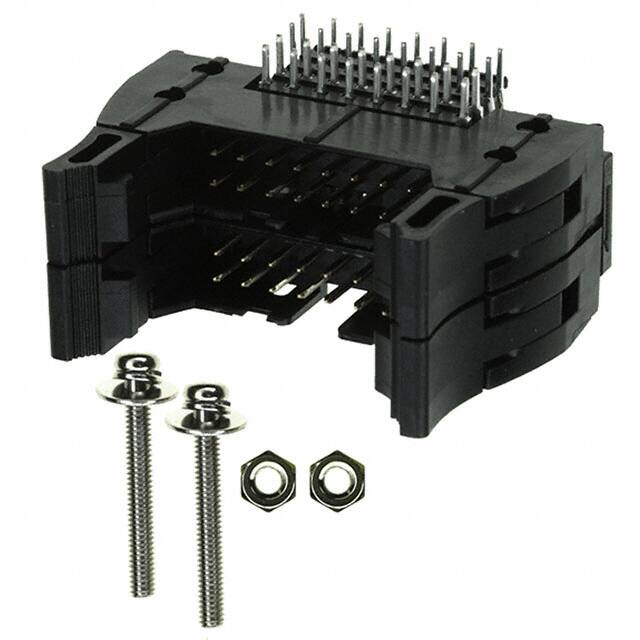

XG4A-1639-A

Teknik Özellikler

Fastening Type

Latch Lock/Eject Hooks, Long

Number Of Contacts

32

Terminal

Solder

Pozisyon Sayısı

16, 16

Contact Finish Thickness Post

78.7μin 2.00μm

Sıra Sayısı

2

Max Current Rating

3A

Contact Gender

Male

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Özellikler

Keying Slot, Mounting Flange, Mounting Hardware

Ambalaj

Tray

Orientation

Right Angle

Contact Shape

Square

Insulation Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Housing Material

PBT

Contact Finish Thickness Mating

5.90μin 0.150μm

Montaj

Through Hole

Contact Resistance

20mOhm

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Yayın Yılı

2002

Fabrika Tedarik Süresi

15 Weeks

Contact Materials

Brass, Nickel

Contact Finish Post

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Row Spacing Mating

0.100 (2.54mm)

Seri

XG4

Insulation Height

0.669 17.00mm

Montaj Tipi

Through Hole, Right Angle

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Connector Type

Header, Stackable (2)

Parça Durumu

Active
