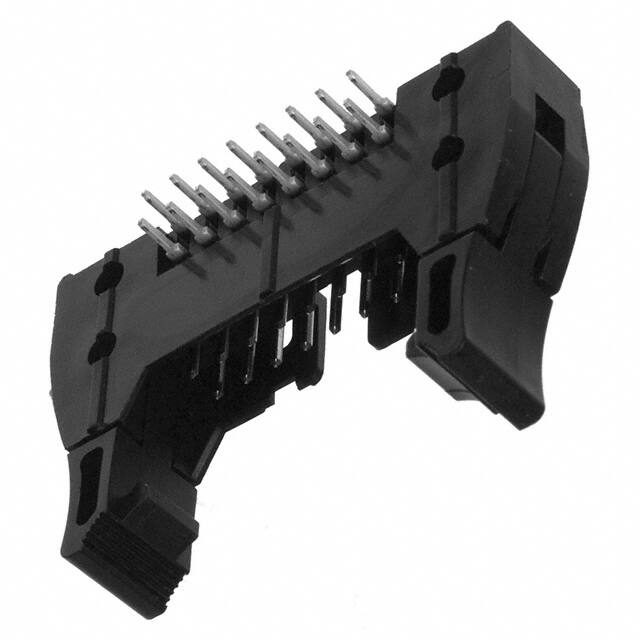

XG4A-1634

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Insulation Height

0.335 8.51mm

Seri

XG4

Row Spacing Mating

0.100 (2.54mm)

Montaj Tipi

Through Hole, Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Number Of Positions Loaded

All

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

Fabrika Tedarik Süresi

8 Weeks

Yayın Yılı

2002

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Insulation Resistance

1GOhm

REACH Uyumluluk Kodu

unknown

Parça Durumu

Active

Contact Type

Male Pin

Reach Svhc

No SVHC

ECCN Kodu

EAR99

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Connector Type

Header

Özellikler

Keying Slot, Mounting Flange

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Sıra Sayısı

2

Pozisyon Sayısı

16

Terminal

Solder

Contact Length Post

0.126 3.20mm

Fastening Type

Latch Lock/Eject Hooks, Long

Contact Finish Thickness Mating

5.90μin 0.150μm

Pitch Mating

0.100 2.54mm

JESD-609 Kodu

e3

Contact Resistance

20mOhm
