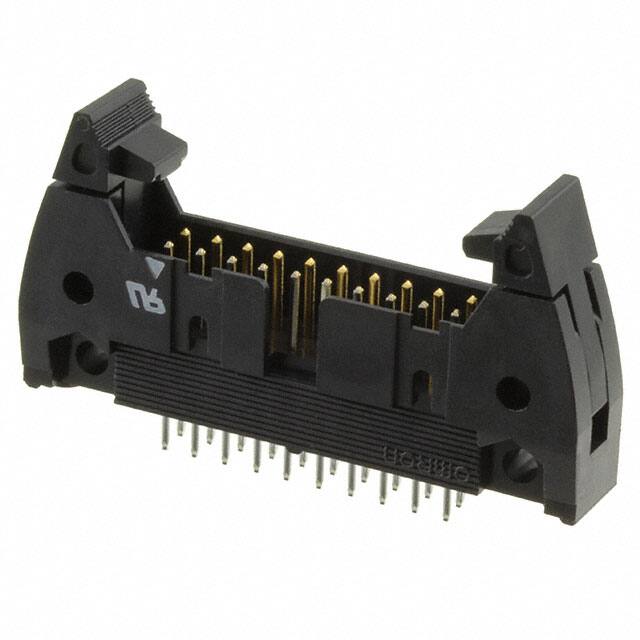

XG4A-1632

Teknik Özellikler

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Özellikler

Keying Slot, Mounting Flange

Maks. Çalışma Sıcaklığı

105°C

Renk

Black

Fastening Type

Latch Lock/Eject Hooks, Short

Terminal

Solder

Stack Height Mating

23.5mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Pitch Mating

0.100 2.54mm

Montaj

Through Hole

Contact Resistance

20mOhm

Ambalaj

Bulk

Insulation Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Insulation Height

0.669 17.00mm

Row Spacing Mating

0.100 (2.54mm)

Contact Plating

Gold

Style

Board to Cable/Wire

Number Of Positions Loaded

All

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

Yayın Yılı

2002

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Insulation Resistance

1GOhm

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Current Rating Amps

3A

Sıra Sayısı

2

Pozisyon Sayısı

16

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Contact Length Post

0.126 3.20mm

Number Of Contacts

16

Min. Çalışma Sıcaklığı

-55°C

Housing Material

PBT

Pitch

2.54mm

Nominal Gerilim

300V

Contact Shape

Square
