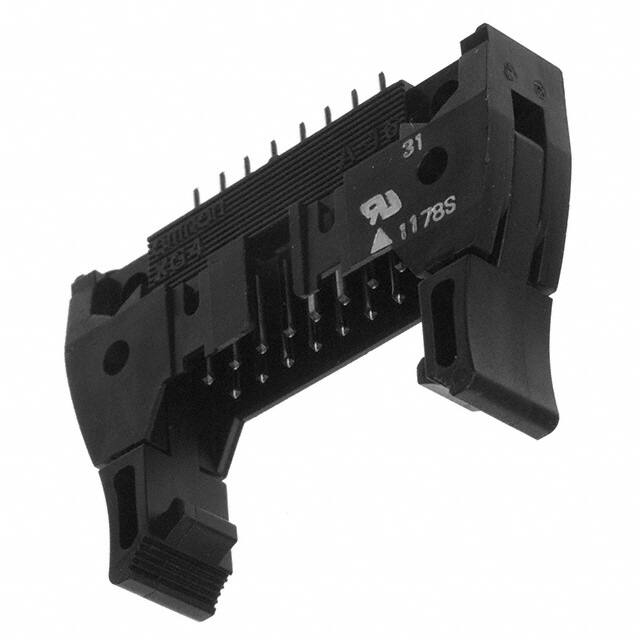

XG4A-1631

Teknik Özellikler

Fabrika Tedarik Süresi

9 Weeks

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole

Seri

XG4

ECCN Kodu

EAR99

Overall Contact Length

0.657 16.70mm

Contact Lengthmating

0.240 6.10mm

REACH Uyumluluk Kodu

unknown

Contact Finish Mating

Gold

Contact Type

Male Pin

Parça Durumu

Active

Contact Length Post

0.126 3.20mm

Contact Gender

Male

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Sıra Sayısı

2

Depth

8.5mm

Pozisyon Sayısı

16

Housing Color

Black

Contact Shape

Square

Orientation

Straight

Uzunluk

39.6mm

Housing Material

Polybutylene

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Contact Materials

Brass, Nickel

Contact Finish Post

Tin

Yayın Yılı

2002

Number Of Positions Loaded

All

Style

Board to Cable/Wire

Insulation Height

0.669 17.00mm

Row Spacing Mating

0.100 (2.54mm)

Connector Type

Header

Shrouding

Shrouded - 4 Wall

HTS Kodu

8536.69.40.40

Insulation Resistance

1GOhm

Reach Svhc

No SVHC

Terminal

Solder

Fastening Type

Latch Lock/Eject Hooks, Long
