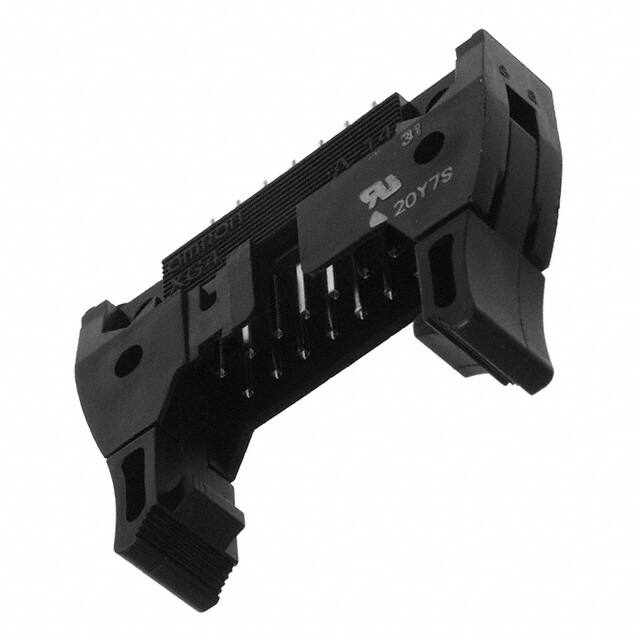

XG4A-1431

Teknik Özellikler

Style

Board to Cable/Wire

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.669 17.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Yayın Yılı

2002

Contact Materials

Brass, Nickel

Contact Finish Post

Tin

Number Of Positions Loaded

All

HTS Kodu

8536.69.40.40

Insulation Resistance

1GOhm

Reach Svhc

Unknown

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Özellikler

Keying Slot, Mounting Flange

Max Current Rating

3A

Contact Finish Thickness Post

78.7μin 2.00μm

Terminal

Solder

Fastening Type

Latch Lock/Eject Hooks, Long

Montaj

Through Hole

Contact Resistance

20mOhm

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Stack Height Mating

23.5mm

Çalışma Sıcaklığı

-55°C~105°C

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole

Seri

XG4

Fabrika Tedarik Süresi

9 Weeks

Contact Finish Mating

Gold

Contact Type

Male Pin

Parça Durumu

Active

ECCN Kodu

EAR99

Overall Contact Length

0.657 16.70mm

Contact Lengthmating

0.240 6.10mm

Contact Gender

Male
