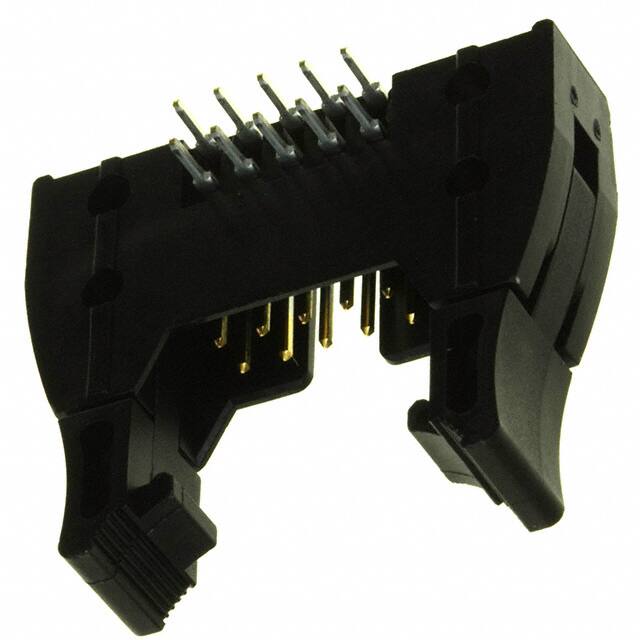

XG4A-1034

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Number Of Positions Loaded

All

Yayın Yılı

2002

Fabrika Tedarik Süresi

15 Weeks

Contact Materials

Brass, Nickel

Contact Finish Post

Tin

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Row Spacing Mating

0.100 (2.54mm)

Seri

XG4

Insulation Height

0.335 8.51mm

Montaj Tipi

Through Hole, Right Angle

ECCN Kodu

EAR99

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Connector Type

Header

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Parça Durumu

Active

Reach Svhc

Unknown

Contact Type

Male Pin

Terminal

Solder

Contact Length Post

0.126 3.20mm

Fastening Type

Latch Lock/Eject Hooks, Long

Özellikler

Keying Slot, Mounting Flange

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Pozisyon Sayısı

10

Depth

27mm

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Sıra Sayısı

2

Housing Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Contact Shape

Square

Orientation

Right Angle

Ambalaj

Tray
