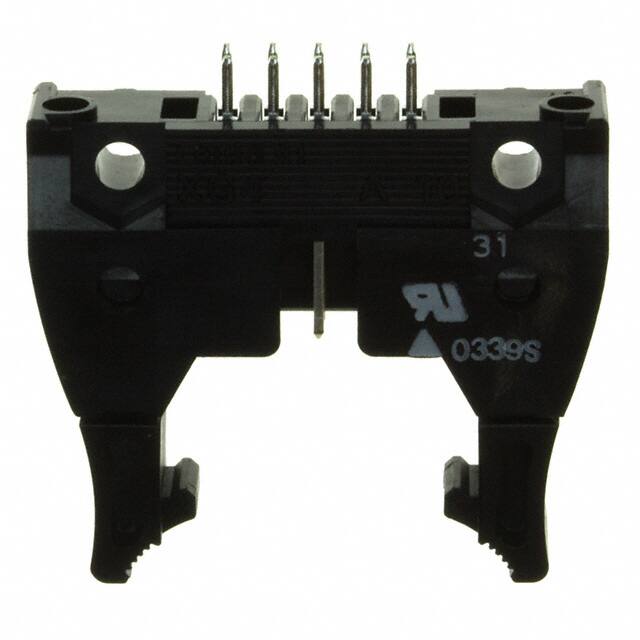

XG4A-1031

Teknik Özellikler

Housing Material

Polybutylene

Stack Height Mating

23.5mm

JESD-609 Kodu

e3

Contact Resistance

20mOhm

Montaj

Through Hole

Pitch Mating

0.100 2.54mm

Uzunluk

32mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Orientation

Straight

Ambalaj

Tray

Contact Shape

Square

Çalışma Sıcaklığı

-55°C~105°C

Housing Color

Black

Depth

8.5mm

Pozisyon Sayısı

10

Sıra Sayısı

2

Max Current Rating

3A

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Gender

Male

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Özellikler

Keying Slot, Mounting Flange

Fastening Type

Latch Lock/Eject Hooks, Long

Contact Length Post

0.126 3.20mm

Terminal

Solder

Contact Type

Male Pin

Reach Svhc

Unknown

Parça Durumu

Active

Insulation Resistance

1GOhm

Contact Finish Mating

Gold

Connector Type

Header

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Overall Contact Length

0.657 16.70mm

Montaj Tipi

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Seri

XG4

Insulation Height

0.669 17.00mm

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant
