Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Seri
- XG2
- Rated Current Signal
- 1A
- Montaj Tipi
- Through Hole
- Max Voltage Rating Ac
- 250V
- RoHS Durumu
- RoHS Compliant
- Number Of Conductors
- ONE
- Iec Conformance
- NO
- Fabrika Tedarik Süresi
- 11 Weeks
- Total Number Of Contacts
- 14
- Parça Durumu
- Active
- ECCN Kodu
- EAR99
- Number Of Pcb Rows
- 2
- Pozisyon Sayısı
- 14
- Sıra Sayısı
- 2
- Contact Gender
- FEMALE
- Cable Termination
- IDC
- Mil Conformance
- NO
- Min. Çalışma Sıcaklığı
- -55°C
- Cable Pitch
- 0.050 1.27mm
- Wire Gauge
- 28 AWG
- Housing Material
- PBT
- Pitch
- 2.54mm
- Nominal Gerilim
- 250V
- Reliability
- COMMERCIAL
- Orientation
- Right Angle
- Contact Finish
- Tin
- Pcb Contact Pattern
- RECTANGULAR
- Number Of Positions Loaded
- All
- Yayın Yılı
- 2001
- Mixed Contacts
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Akım Değeri
- 1A
- Contact Pattern
- RECTANGULAR
- Boardside Pitch
- 0.100 2.54mm
- HTS Kodu
- 8536.69.40.40
- Dielectric Withstanding Voltage
- 500VAC V
- Insulation Resistance
- 1GOhm
- Row Spacing
- 0.100 (2.54mm)
- Ul Flammability Code
- 94V-0

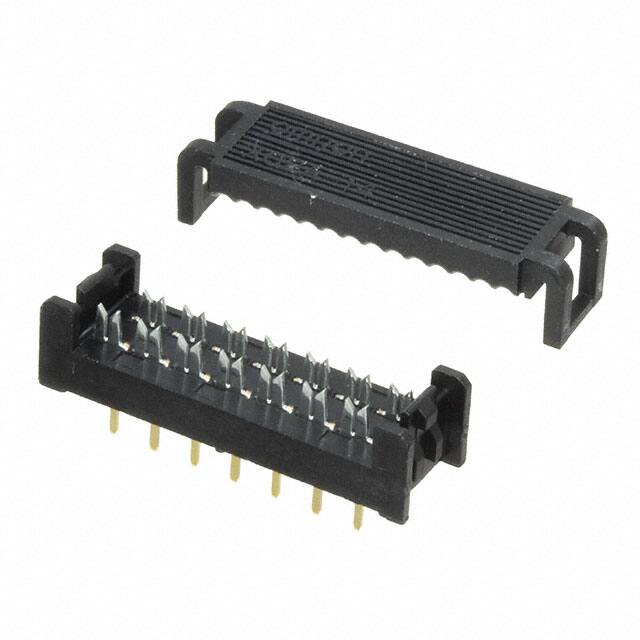

- Connector Type
- Ribbon Cable, DIP Header
