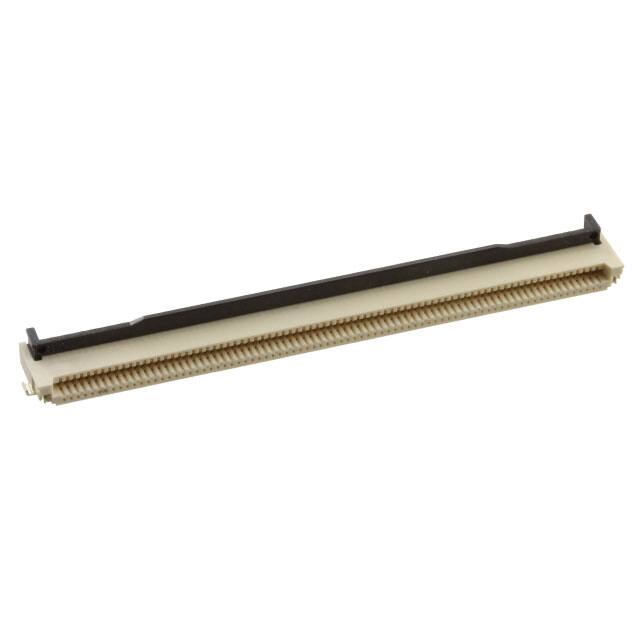

XF3M-8015-1BE

Teknik Özellikler

Body Depth

0.224 inch

Housing Color

Natural

Çalışma Sıcaklığı

-30°C~85°C

Pozisyon Sayısı

80

Terminal

Solder

Insulation Resistance

100000000Ohm

Height Above Board

0.079 2.00mm

Yayın Yılı

2013

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Contact Style

BELLOWED TYPE

Ffc Fcb Thickness

0.30mm

Connector Type

FFC/FPC CONNECTOR

Seri

XF3M

Number Of Pcb Rows

1

Flat Flex Type

FFC, FPC

Montaj Tipi

Surface Mount, Right Angle

Özellikler

Solder Retention

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Mating Cycles

20

RoHS Durumu

RoHS Compliant

Total Number Of Contacts

80

Akım Değeri

500mA

Contact Finish

Gold

Cable End Type

Tapered

Material Flammability Rating

UL94 V-0

Contact Materials

Copper Alloy

Contact Finish Thickness

Flash

Pcb Contact Pattern

RECTANGULAR

Actuatorcolor

Black

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Nominal Gerilim

50V

Current Rating Amps

0.5A

Fabrika Tedarik Süresi

13 Weeks

Reliability

COMMERCIAL

Body Breadth

0.079 inch

Flammability Rating

UL94 V-0

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Montaj

Surface Mount
