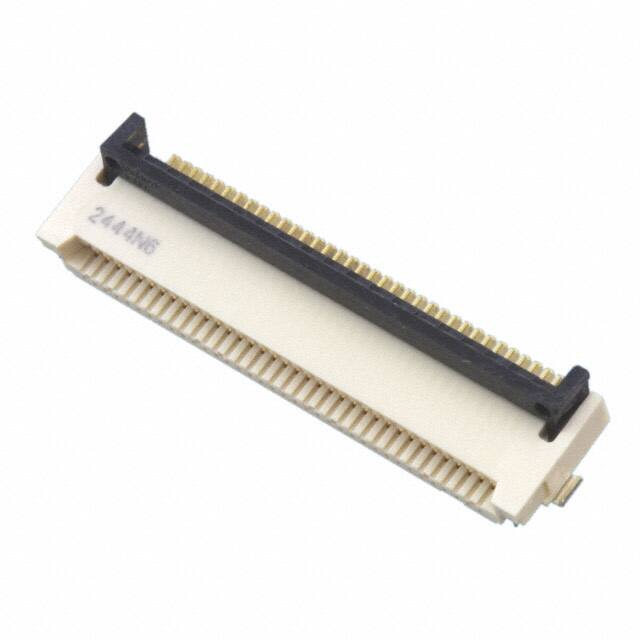

XF3M-3615-1B

Teknik Özellikler

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Montaj

Surface Mount

Locking Feature

Rotary Lock, Backlock

Pitch

0.020 0.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

50mOhm

Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Current Rating Amps

0.5A

Fabrika Tedarik Süresi

15 Weeks

Reliability

COMMERCIAL

Body Breadth

0.079 inch

ECCN Kodu

EAR99

Flammability Rating

UL94 V-0

Contact Finish Thickness

Flash

Contact Materials

Copper Alloy

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

RECTANGULAR

Actuatorcolor

Black

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Nominal Gerilim

50V

Total Number Of Contacts

36

Cable End Type

Tapered

Contact Finish

Gold

Akım Değeri

500mA

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Mating Cycles

20

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Contact Style

BELLOWED TYPE

Ffc Fcb Thickness

0.30mm

Connector Type

FFC/FPC CONNECTOR

Seri

XF3M

Number Of Pcb Rows

1

Flat Flex Type

FFC, FPC

Montaj Tipi

Surface Mount, Right Angle

Özellikler

Solder Retention

Terminal

Solder
