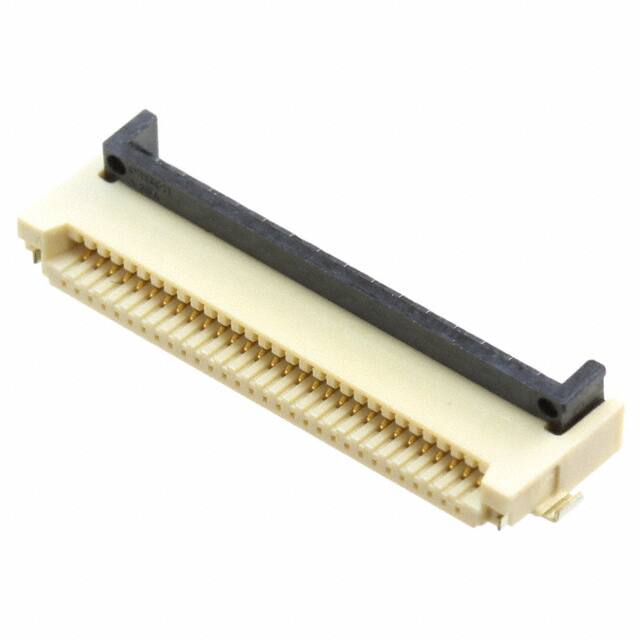

XF3M-3015-1B

Teknik Özellikler

Max Voltage Rating Dc

5.05kV

Actuatorcolor

Black

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Body Breadth

0.079 inch

Locking Feature

Rotary Lock, Backlock

Pitch

0.020 0.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Max Current Rating

500mA

Montaj

Surface Mount

Contact Resistance

50mOhm

Contact Pattern

RECTANGULAR

Body Depth

0.224 inch

JESD-609 Kodu

e4

Gender

Receptacle

Çalışma Sıcaklığı

-30°C~85°C

Contact Location

Dual

Height Above Board

0.079 2.00mm

Seri

XF3M

Flat Flex Type

FFC, FPC

Mating Cycles

20

REACH Uyumluluk Kodu

unknown

RoHS Durumu

RoHS Compliant

Total Number Of Contacts

30

Contact Finish

Gold

Cable End Type

Tapered

Akım Değeri

500mA

Orientation

Right Angle

Contact Materials

Copper Alloy

Contact Finish Thickness

Flash

Nominal Gerilim

50V

Reliability

COMMERCIAL

Current Rating Amps

0.5A

Fabrika Tedarik Süresi

14 Weeks

Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Sıra Sayısı

1

Pozisyon Sayısı

30
