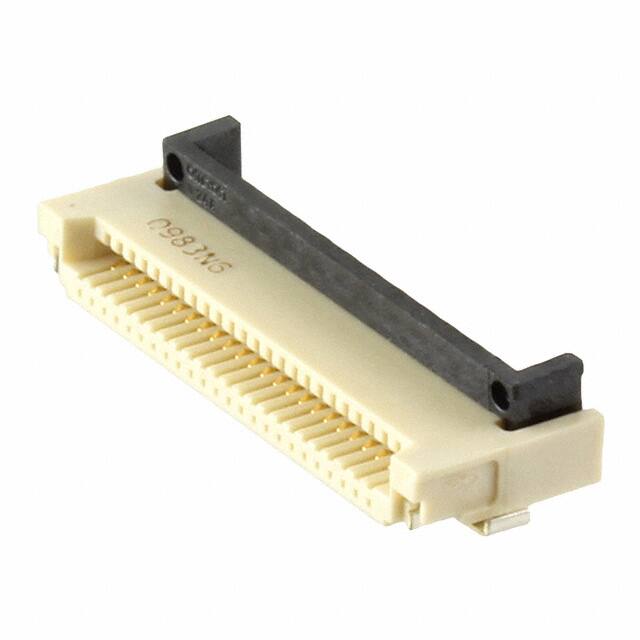

XF3M-2315-1B

Teknik Özellikler

Housing Color

Natural

Çalışma Sıcaklığı

-30°C~85°C

JESD-609 Kodu

e4

Pozisyon Sayısı

23

Body Depth

0.224 inch

Insulation Resistance

100000000Ohm

Height Above Board

0.079 2.00mm

Yayın Yılı

2013

Terminal

Solder

Number Of Pcb Rows

1

Flat Flex Type

FFC, FPC

Montaj Tipi

Surface Mount, Right Angle

Özellikler

Solder Retention

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Contact Style

BELLOWED TYPE

Ffc Fcb Thickness

0.30mm

Connector Type

FFC/FPC CONNECTOR

Seri

XF3M

RoHS Durumu

RoHS Compliant

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Mating Cycles

20

Cable End Type

Tapered

Contact Finish

Gold

Total Number Of Contacts

23

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Nominal Gerilim

50V

Contact Materials

Copper Alloy

Material Flammability Rating

UL94 V-0

Contact Finish Thickness

Flash

Pcb Contact Pattern

RECTANGULAR

Actuatorcolor

Black

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

7 Weeks

HTS Kodu

8536.69.40.51

Current Rating Amps

0.5A

Reliability

COMMERCIAL

Body Breadth

0.079 inch

Contact Pattern

RECTANGULAR
