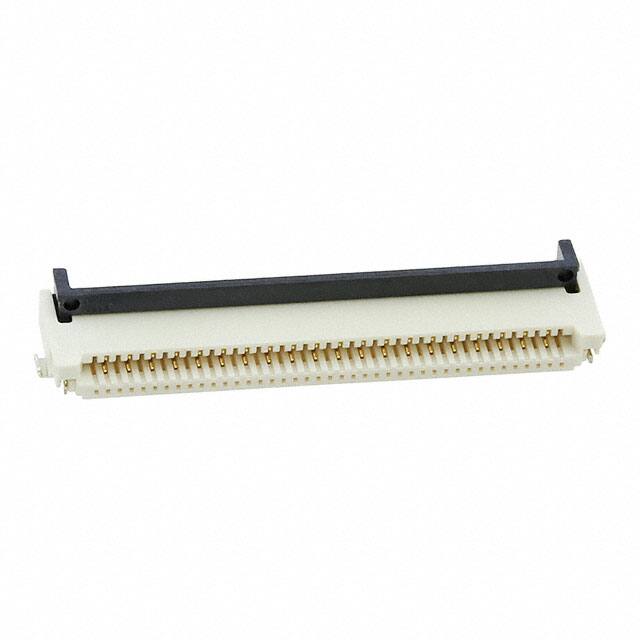

XF3M-2215-1B

Teknik Özellikler

Terminal

Solder

Yayın Yılı

2013

Height Above Board

0.079 2.00mm

Insulation Resistance

100000000Ohm

Pozisyon Sayısı

22

JESD-609 Kodu

e4

Housing Color

Natural

Çalışma Sıcaklığı

-30°C~85°C

Mating Cycles

20

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

RoHS Durumu

RoHS Compliant

Ffc Fcb Thickness

0.30mm

Connector Type

FFC/FPC CONNECTOR

Seri

XF3M

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Contact Style

BELLOWED TYPE

Montaj Tipi

Surface Mount, Right Angle

Özellikler

Solder Retention

Flat Flex Type

FFC, FPC

Number Of Pcb Rows

1

Pcb Contact Pattern

RECTANGULAR

Actuatorcolor

Black

Contact Materials

Copper Alloy

Material Flammability Rating

UL94 V-0

Contact Finish Thickness

Flash

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Nominal Gerilim

50V

Total Number Of Contacts

22

Cable End Type

Tapered

Contact Finish

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

Locking Feature

Rotary Lock, Backlock

Mounting Option1

LOCKING

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Contact Resistance

50mOhm
