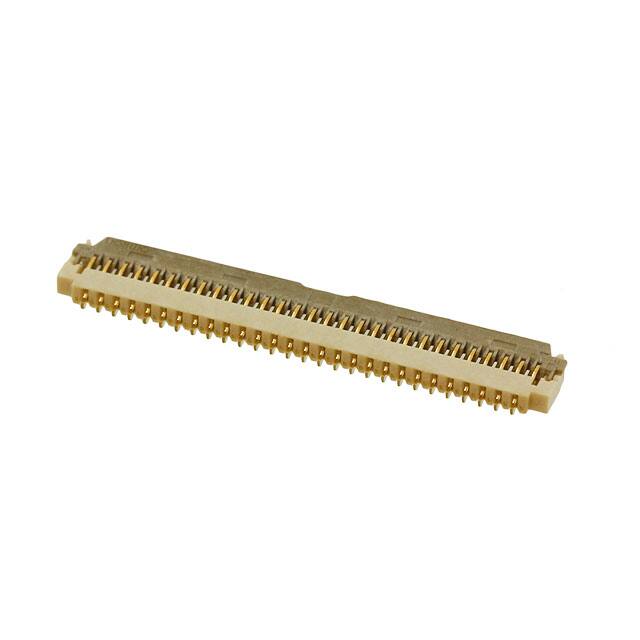

XF3H-5755-31A

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Mating Cycles

20

Flat Flex Type

FPC

Option

GENERAL PURPOSE

Seri

XF3H

Contact Gender

FEMALE

Height Above Board

0.035 0.88mm

Radyasyon Dayanımı

No

Contact Location

Bottom

JESD-609 Kodu

e4

Çalışma Sıcaklığı

-30°C~85°C

Mixed Contacts

NO

Contact Resistance

50mOhm

Locking Feature

Rotary Lock

Pitch

0.012 0.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Max Current Rating

200mA

Montaj

Surface Mount

HTS Kodu

8536.69.40.51

Din Conformance

NO

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Actuatorcolor

Brown

Material Flammability Rating

UL94 V-0

Max Voltage Rating Dc

5.05kV

Filter Feature

NO

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Ambalaj

Tape & Reel (TR)

Parça Durumu

Obsolete

Ffc Fcb Thickness

0.20mm

Mil Conformance

NO

Yayın Yılı

2006

Terminal

Solder

Pozisyon Sayısı

57

Housing Color

Natural

Sıra Sayısı

2

Iec Conformance

NO

ECCN Kodu

EAR99

Flammability Rating

UL94 V-0
