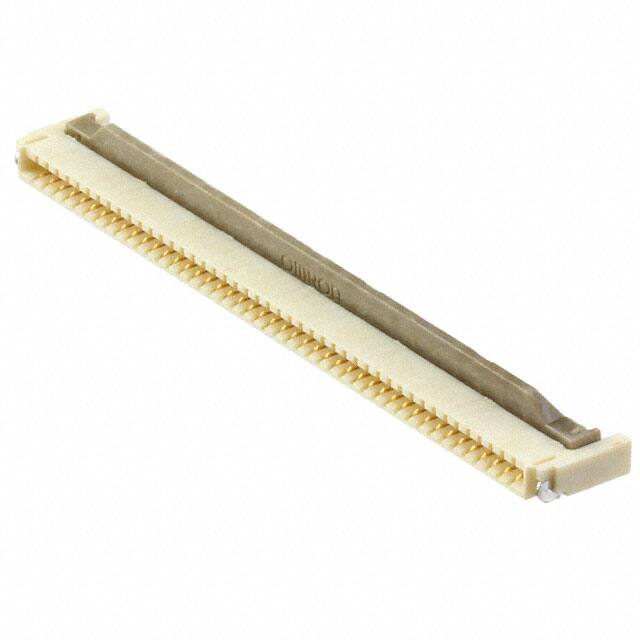

XF2W-4515-1AE

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

RECTANGULAR

Actuatorcolor

Brown

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Montaj

Surface Mount

Max Current Rating

500mA

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

Locking Feature

Rotary Lock, Backlock

Contact Resistance

60mOhm

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Din Conformance

NO

Body Breadth

0.043 inch

Height Above Board

0.044 1.12mm

Dielectric Withstanding Voltage

250VAC V

Çalışma Sıcaklığı

-30°C~85°C

JESD-609 Kodu

e4

Max Voltage Rating Ac

50V

REACH Uyumluluk Kodu

unknown

Mating Cycles

20

RoHS Durumu

RoHS Compliant

Contact Gender

FEMALE

Seri

XF2W

Option

GENERAL PURPOSE

Flat Flex Type

FPC

Contact Materials

Copper Alloy

Contact Finish Thickness

5.90μin 0.150μm

Additional Feature

LOW PROFILE

Uzunluk

24.5mm

Total Number Of Contacts

45

Orientation

Right Angle

Akım Değeri

500mA

Cable End Type

Tapered

Contact Finish

Gold

Iec Conformance

NO

Sıra Sayısı

1

Current Rating Amps

0.5A

Reliability

COMMERCIAL
