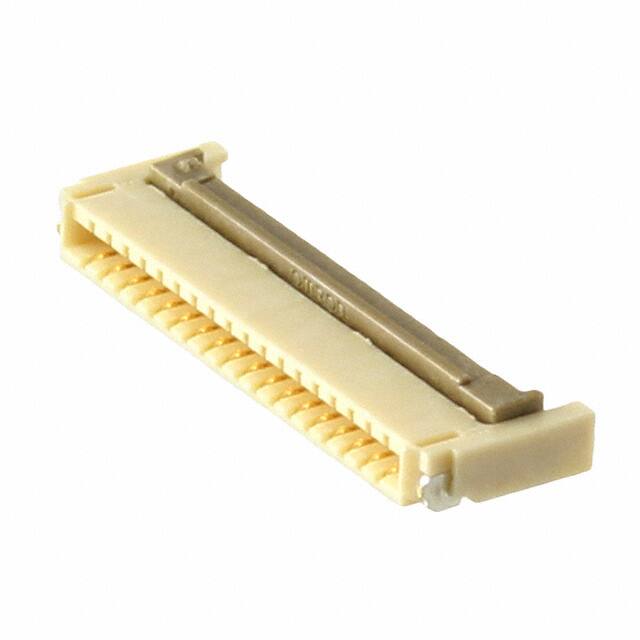

XF2W-1815-1A

Teknik Özellikler

Flat Flex Type

FPC

Option

GENERAL PURPOSE

Seri

XF2W

Contact Gender

FEMALE

RoHS Durumu

RoHS Compliant

Mating Cycles

20

REACH Uyumluluk Kodu

unknown

JESD-609 Kodu

e4

Çalışma Sıcaklığı

-30°C~85°C

Height Above Board

0.044 1.12mm

Body Breadth

0.043 inch

Din Conformance

NO

Mixed Contacts

NO

Contact Pattern

RECTANGULAR

Contact Resistance

60mOhm

Locking Feature

Rotary Lock, Backlock

Pitch

0.020 0.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Montaj

Surface Mount

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Actuatorcolor

Brown

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Number Of Pcb Rows

1

Contact Style

BELLOWED TYPE

Ambalaj

Cut Tape (CT)

Parça Durumu

Obsolete

Ffc Fcb Thickness

0.30mm

Plating Thickness

6μin

Mil Conformance

NO

Filter Feature

NO

Reference Standard

UL

Pozisyon Sayısı

18

Housing Color

Natural

Yayın Yılı

2013

Terminal

Solder

ECCN Kodu

EAR99
