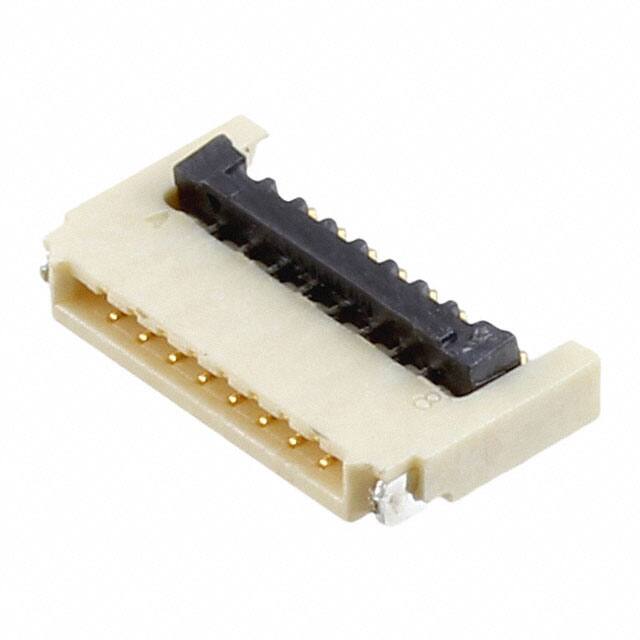

XF2U-0815-3A

Teknik Özellikler

JESD-609 Kodu

e4

Max Voltage Rating Ac

50V

Gender

Receptacle

Çalışma Sıcaklığı

-30°C~85°C

Dielectric Withstanding Voltage

250VAC V

Height Above Board

0.035 0.88mm

Radyasyon Dayanımı

No

Contact Location

Dual

Flat Flex Type

FPC

Option

GENERAL PURPOSE

Seri

XF2U

RoHS Durumu

RoHS Compliant

Mating Cycles

20

Max Voltage Rating Dc

5.05kV

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Actuatorcolor

Black

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Depth

3.4mm

Body Breadth

0.035 inch

Din Conformance

NO

Mixed Contacts

NO

Contact Resistance

60mOhm

Contact Pattern

RECTANGULAR

Locking Feature

Rotary Lock, Backlock

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

Max Current Rating

500mA

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Montaj

Surface Mount, Through Hole

Pozisyon Sayısı

8

Housing Color

Natural

Reach Svhc

Unknown

Yayın Yılı

2006

Insulation Resistance

100mOhm

Terminal

Solder

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Number Of Pcb Rows

1

Parça Durumu

Obsolete
