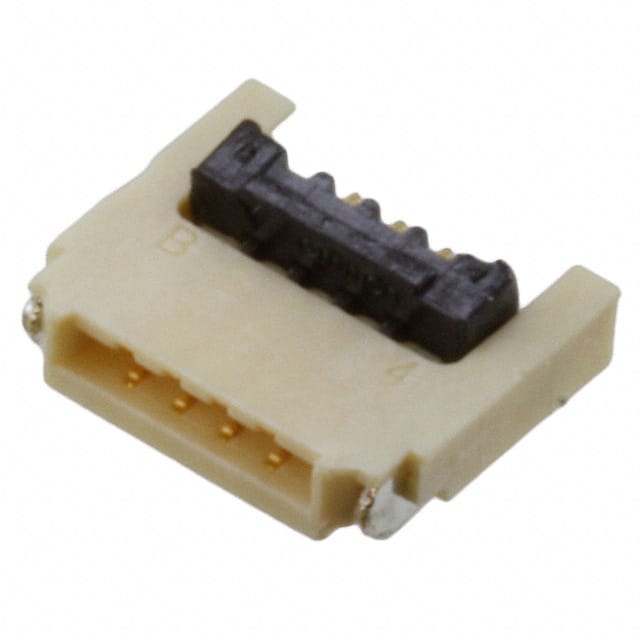

XF2U-0415-3A

Teknik Özellikler

Din Conformance

NO

Depth

3.5mm

Body Breadth

0.035 inch

Contact Resistance

60mOhm

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Montaj

Surface Mount

Max Current Rating

500mA

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

Locking Feature

Rotary Lock, Backlock

Max Voltage Rating Dc

5.05kV

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

RECTANGULAR

Actuatorcolor

Black

Flat Flex Type

FPC

Seri

XF2U

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

Mating Cycles

20

Çalışma Sıcaklığı

-30°C~85°C

Gender

Receptacle

JESD-609 Kodu

e4

Max Voltage Rating Ac

50V

Dielectric Withstanding Voltage

250VAC V

Voltage Rated Ac

50V

Radyasyon Dayanımı

No

Height Above Board

0.035 0.88mm

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Wirecable Type

Straight

Fabrika Tedarik Süresi

11 Weeks

Current Rating Amps

0.5A

Reliability

COMMERCIAL

Iec Conformance

NO

Sıra Sayısı

1

Lead Pitch

500μm

Orientation

Right Angle
