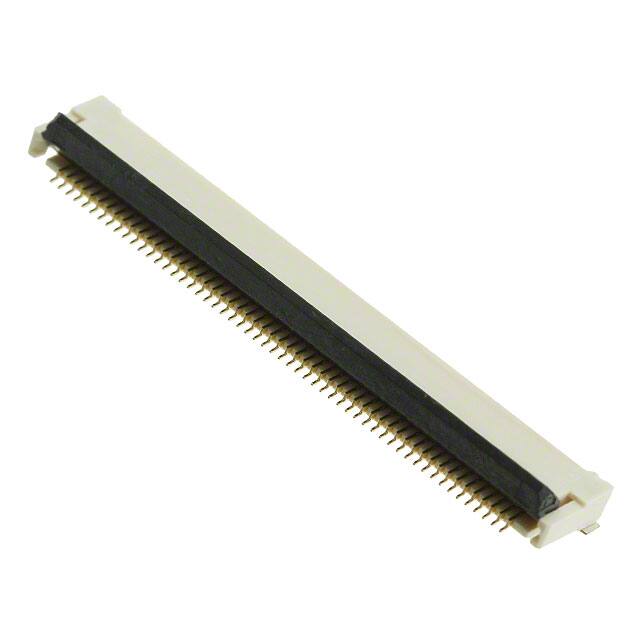

XF2M-5515-1AH

Teknik Özellikler

Seri

XF2M

Option

GENERAL PURPOSE

Flat Flex Type

FPC

Mating Cycles

20

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-30°C~85°C

Gender

Receptacle

JESD-609 Kodu

e4

Height Above Board

0.083 2.10mm

Din Conformance

NO

Montaj

Surface Mount

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Max Current Rating

500mA

Pitch

0.020 0.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Locking Feature

Rotary Lock, Backlock

Contact Resistance

50mOhm

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Max Voltage Rating Dc

5.05kV

Material Flammability Rating

UL94 V-0

Actuatorcolor

Black

Pcb Contact Pattern

RECTANGULAR

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Mil Conformance

NO

Plating Thickness

6μin

Ffc Fcb Thickness

0.30mm

Contact Style

BELLOWED TYPE

Ambalaj

Tape & Reel (TR)

Parça Durumu

Active

Number Of Pcb Rows

1

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Reference Standard

UL

Filter Feature

NO

Reach Svhc

Unknown

Housing Color

Natural

Pozisyon Sayısı

55

Terminal

Solder

Yayın Yılı

2004
