Adet bazlı fiyat
- 1+ adet$0.31
- 10+ adet$0.29
- 100+ adet$0.28
- 500+ adet$0.26
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Locking Feature
- Rotary Lock, Backlock
- Pitch
- 0.020 0.50mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Max Current Rating
- 500mA
- Housing Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Montaj
- Surface Mount
- Mixed Contacts
- NO
- Contact Pattern
- RECTANGULAR
- Contact Resistance
- 50mOhm
- Depth
- 6.2mm
- Din Conformance
- NO
- Actuatorcolor
- Black
- Pcb Contact Pattern
- RECTANGULAR
- Material Flammability Rating
- UL94 V-0
- Actuator Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Max Voltage Rating Dc
- 5.05kV
- Mating Cycles
- 20
- RoHS Durumu
- RoHS Compliant
- Option
- GENERAL PURPOSE
- Seri

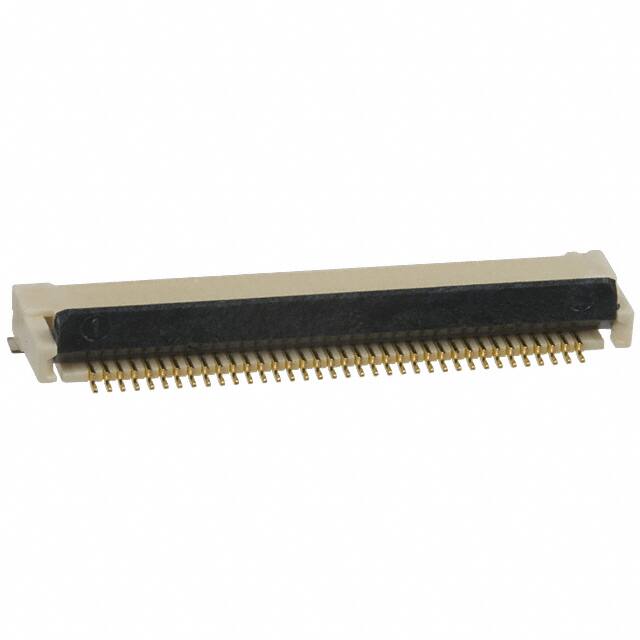

- XF2M
- Flat Flex Type
- FPC
- Height Above Board
- 0.083 2.10mm
- Kurşunsuz
- Lead Free
- Dielectric Withstanding Voltage
- 250VAC V
- Max Voltage Rating Ac
- 50V
- JESD-609 Kodu
- e4
- Voltage Rated Dc
- 50V
- Gender
- Receptacle
- Çalışma Sıcaklığı
- -30°C~85°C
- Lead Pitch
- 500μm
- Sıra Sayısı
- 1
- Iec Conformance
- NO
- Reliability
- COMMERCIAL
- Fabrika Tedarik Süresi
- 14 Weeks
- Current Rating Amps
- 0.5A
- ECCN Kodu
- EAR99
- Flammability Rating
- UL94 V-0
- Contact Materials
- Copper Alloy
- Contact Finish Thickness
- 5.90μin 0.150μm
- Uzunluk
- 22.1mm
