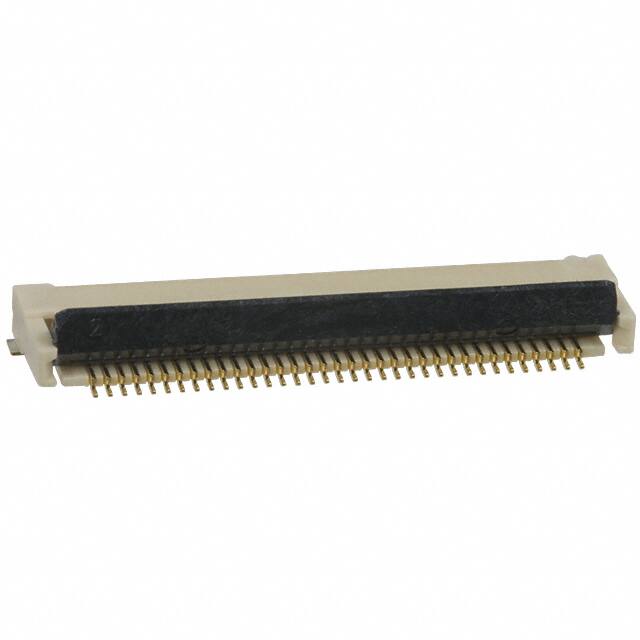

XF2M-3515-1A

Teknik Özellikler

Kurşunsuz Kodu

yes

Flammability Rating

UL94 V-0

Current Rating Amps

0.5A

Fabrika Tedarik Süresi

14 Weeks

Reliability

COMMERCIAL

Iec Conformance

NO

Lead Pitch

500μm

Sıra Sayısı

1

Orientation

Right Angle

Akım Değeri

500mA

Cable End Type

Tapered

Contact Finish

Gold

Total Number Of Contacts

35

Additional Feature

LOW PROFILE

Uzunluk

21.6mm

Contact Materials

Copper Alloy

Contact Finish Thickness

5.90μin 0.150μm

Number Of Pcb Rows

1

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Mil Conformance

NO

Plating Thickness

6μin

Ffc Fcb Thickness

0.30mm

Contact Style

BELLOWED TYPE

Ambalaj

Tape & Reel (TR)

Parça Durumu

Active

Filter Feature

NO

Reference Standard

UL

Housing Color

Natural

Reach Svhc

Unknown

Insulation Resistance

100MOhm

Yayın Yılı

2004

Terminal

Solder

Din Conformance

NO

Depth

6.2mm

Contact Resistance

50mOhm

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Montaj

Surface Mount

Max Current Rating

500mA
