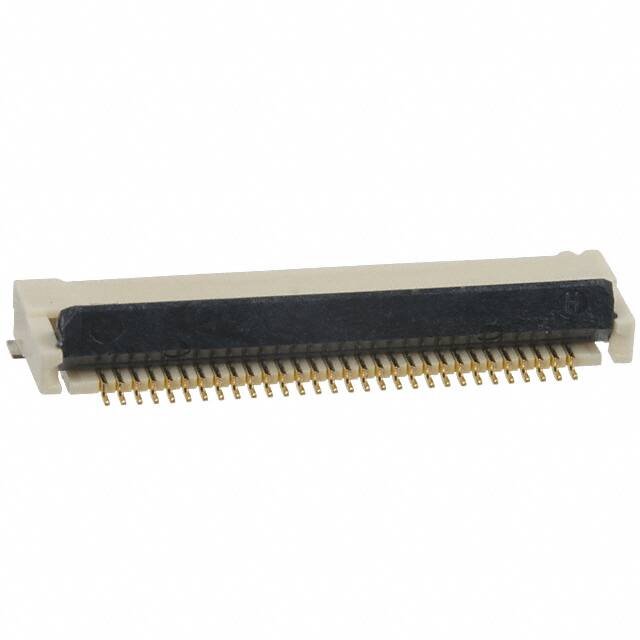

XF2M-3015-1A

Teknik Özellikler

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Height Above Board

0.083 2.10mm

Dielectric Withstanding Voltage

250VAC V

Voltage Rated Ac

50V

Çalışma Sıcaklığı

-30°C~85°C

Voltage Rated Dc

50V

Gender

Receptacle

JESD-609 Kodu

e4

Max Voltage Rating Ac

50V

Mating Cycles

20

RoHS Durumu

RoHS Compliant

Seri

XF2M

Option

GENERAL PURPOSE

Flat Flex Type

FPC

Number Of Poles

30

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

RECTANGULAR

Actuatorcolor

Black

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Max Voltage Rating Dc

50V

Montaj

Surface Mount

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Max Current Rating

500mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

Locking Feature

Rotary Lock, Backlock

Contact Resistance

50mOhm

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Din Conformance

NO

Depth

6.2mm

Terminal

Solder

Insulation Resistance

100MOhm

Yayın Yılı

2004

Reach Svhc

Unknown

Housing Color

Natural

Reference Standard

UL

Filter Feature

NO

Mil Conformance

NO
