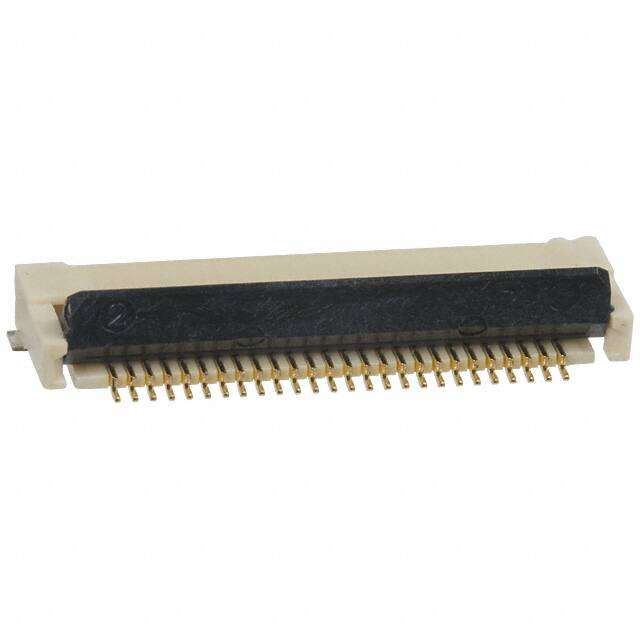

XF2M-2615-1A

Teknik Özellikler

Depth

6.2mm

Din Conformance

NO

Mixed Contacts

NO

Contact Pattern

RECTANGULAR

Contact Resistance

50mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

Locking Feature

Rotary Lock, Backlock

Montaj

Surface Mount

Max Current Rating

500mA

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Max Voltage Rating Dc

5.05kV

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Pcb Contact Pattern

RECTANGULAR

Actuatorcolor

Black

Material Flammability Rating

UL94 V-0

Flat Flex Type

FPC

Seri

XF2M

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

Mating Cycles

20

Voltage Rated Dc

50V

Gender

Receptacle

JESD-609 Kodu

e4

Max Voltage Rating Ac

50V

Çalışma Sıcaklığı

-30°C~85°C

Dielectric Withstanding Voltage

250VAC V

Height Above Board

0.083 2.10mm

Kurşunsuz

Lead Free

Yükseklik

3.1mm

Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.5A

Lead Pitch

500μm

Sıra Sayısı

1

Iec Conformance

NO

Orientation

Right Angle

Contact Finish

Gold

Cable End Type

Tapered
