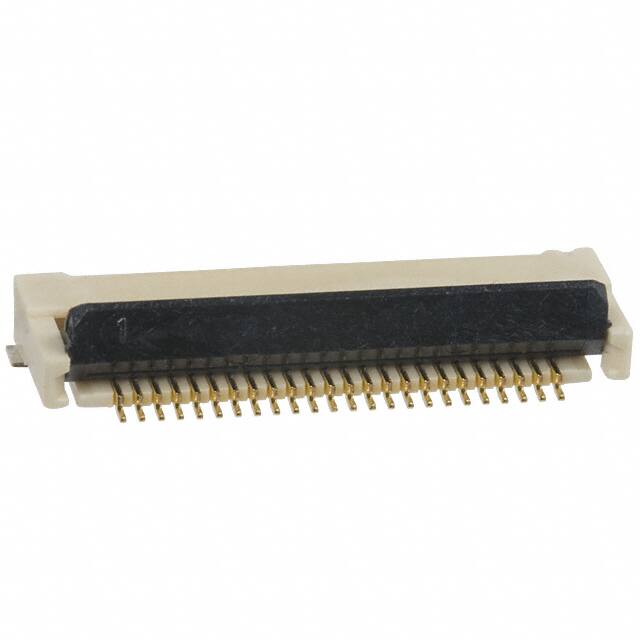

XF2M-2415-1A

Teknik Özellikler

Voltage Rated Dc

50V

Gender

Receptacle

JESD-609 Kodu

e4

Max Voltage Rating Ac

50V

Çalışma Sıcaklığı

-30°C~85°C

Voltage Rated Ac

50V

Dielectric Withstanding Voltage

250VAC V

Height Above Board

0.083 2.10mm

Radyasyon Dayanımı

No

Kurşunsuz

Lead Free

Flat Flex Type

FPC

Number Of Poles

24

Seri

XF2M

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

Mating Cycles

20

Max Voltage Rating Dc

5.05kV

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Pcb Contact Pattern

RECTANGULAR

Actuatorcolor

Black

Material Flammability Rating

UL94 V-0

Depth

6.2mm

Din Conformance

NO

Mixed Contacts

NO

Contact Pattern

RECTANGULAR

Contact Resistance

50mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

Locking Feature

Rotary Lock, Backlock

Montaj

Surface Mount

Max Current Rating

500mA

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Housing Color

Natural

Reach Svhc

No SVHC

Yayın Yılı

2004

Insulation Resistance

100MOhm

Terminal

Solder

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Number Of Pcb Rows

1
