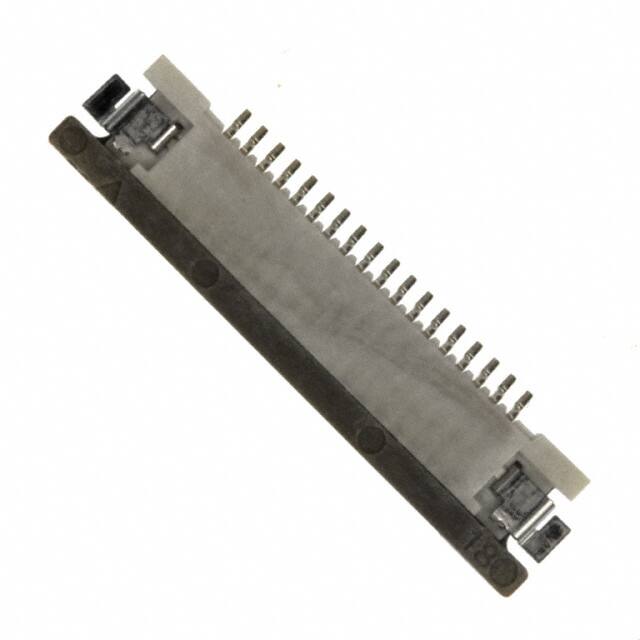

XF2L-1835-1A

Teknik Özellikler

Contact Location

Bottom

Kurşunsuz

Lead Free

Height Above Board

0.047 1.20mm

Dielectric Withstanding Voltage

250VAC V

Voltage Rated Ac

50V

Çalışma Sıcaklığı

-30°C~85°C

Voltage Rated Dc

50V

Gender

Receptacle

JESD-609 Kodu

e4

Max Voltage Rating Ac

50V

Mating Cycles

20

RoHS Durumu

RoHS Compliant

Seri

XF2L

Option

GENERAL PURPOSE

Flat Flex Type

FPC

Material Flammability Rating

UL94 V-0

Actuatorcolor

Brown

Pcb Contact Pattern

RECTANGULAR

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Max Voltage Rating Dc

5.05kV

Montaj

Surface Mount

Max Current Rating

500mA

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

Locking Feature

Slide Lock

Contact Resistance

30mOhm

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Din Conformance

NO

Depth

3.45mm

Body Breadth

0.047 inch

Terminal

Solder

Insulation Resistance

100MOhm

Yayın Yılı

2004

Reach Svhc

Unknown

Housing Color

Natural

Pozisyon Sayısı

18

Reference Standard

UL

Filter Feature

NO
