Adet bazlı fiyat
- 1+ adet$4.65
- 10+ adet$4.39
- 100+ adet$4.14
- 500+ adet$3.91
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- RoHS Durumu
- RoHS Compliant

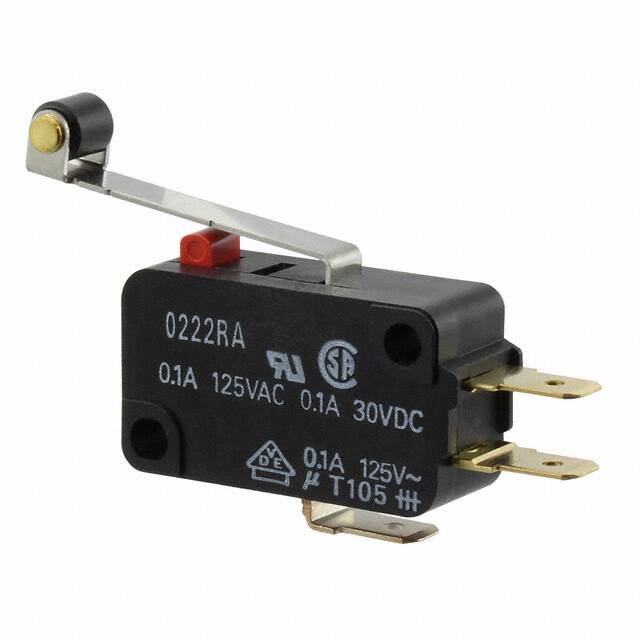

- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Operating Force
- 30gf
- Voltage Rated Ac
- 125V
- Reach Svhc
- Unknown
- Pretravelmax
- 4 mm
- Body Height
- 15.9mm
- Differential Travel
- 0.031 (0.8mm)
- Switch Function
- On-Mom
- Actuator Type
- Lever, Roller
- Depth
- 10.3mm
- Operating Position
- 0.815 (20.7mm)
- HTS Kodu
- 8536.50.70.00
- Circuit
- SPDT
- Pretravel
- 0.157 (4.0mm)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Currentacmax
- 0.1A
- Radyasyon Dayanımı
- No
- Max Voltage Rating Dc
- 30V
- Contact Currentdcmax
- 0.1A
- Voltage Rated Dc
- 30V
- Akım Değeri
- 100mA
- Orientation
- Straight
- Contact Dc Max Rating R Load
- .1A@30VDC
- Montaj Tipi
- Chassis Mount
- ECCN Kodu
- EAR99
- Contact Current Rating
- 100mA
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 8 Weeks
- Current Rating Amps
- 100mA AC/DC
- Kurşunsuz
- Lead Free
- Uzunluk
- 49.2mm
- Montaj
- Chassis Mount, Screw
- Contact Materials
- Gold
- Terminal Stili
- Quick Connect - 0.187 (4.7mm)
- Actuator Material
- Polyacetar, Resin, Stainless Steel
- Max Current Rating
- 100mA
- Mechanical Life
- 10,000,000 Cycles
- Overtravel
- 0.062 (1.6mm)
- Max Voltage Rating Ac
- 125V
