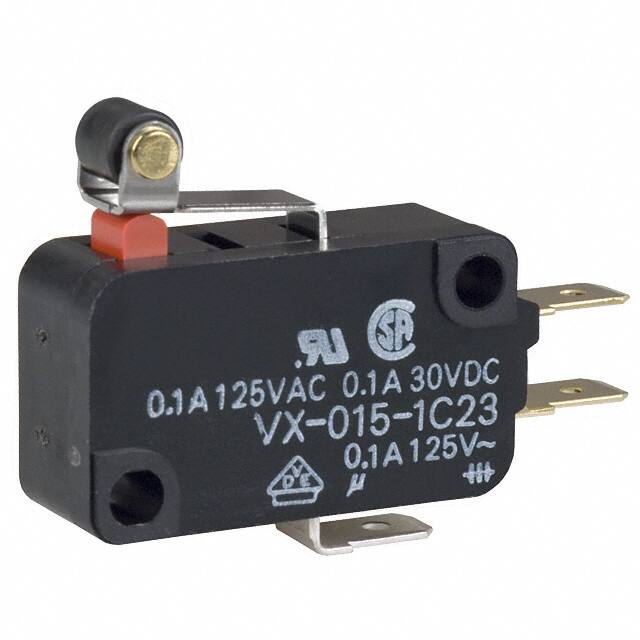

VX-015-1C23

Teknik Özellikler

Current Rating Amps

100mA AC/DC

Kurşunsuz

Lead Free

Montaj

Chassis Mount, Screw

Uzunluk

37.8mm

Contact Materials

Gold

Terminal Stili

Quick Connect - 0.187 (4.7mm)

Actuator Material

Polyacetar, Resin, Stainless Steel

Max Current Rating

100mA

Mechanical Life

10,000,000 Cycles

Max Voltage Rating Ac

125V

Overtravel

0.030 (0.76mm)

Seri

VX

Kurşunsuz Kodu

yes

Terminal

Quick Connect

Kılıf / Paket

100

Yayın Yılı

2004

Çalışma Sıcaklığı

-25°C~80°C

Ingress Protection

IP40

Ambalaj

Bulk

Contact Ac Max Rating R Load

.1A@125VAC

Electricallife

1,000,000 Cycles

Switch Type

SNAP ACTING/LIMIT SWITCH

Reach Svhc

Unknown

Voltage Rated Ac

125V

Operating Force

60gf

RoHS Durumu

RoHS Compliant

Switch Function

On-Mom

Differential Travel

0.020 (0.5mm)

Pretravelmax

1.6 mm

Body Height

15.9mm

Operating Position

0.815 (20.7mm)

Depth

10.3mm

HTS Kodu

8536.50.70.00

Release Force

4.079gf

Actuator Type

Lever, Roller

Nem Hassasiyeti (MSL)

1 (Unlimited)

Circuit

SPDT

Pretravel

0.063 (1.6mm)

Max Voltage Rating Dc

30V

Contact Currentdcmax

0.1A
