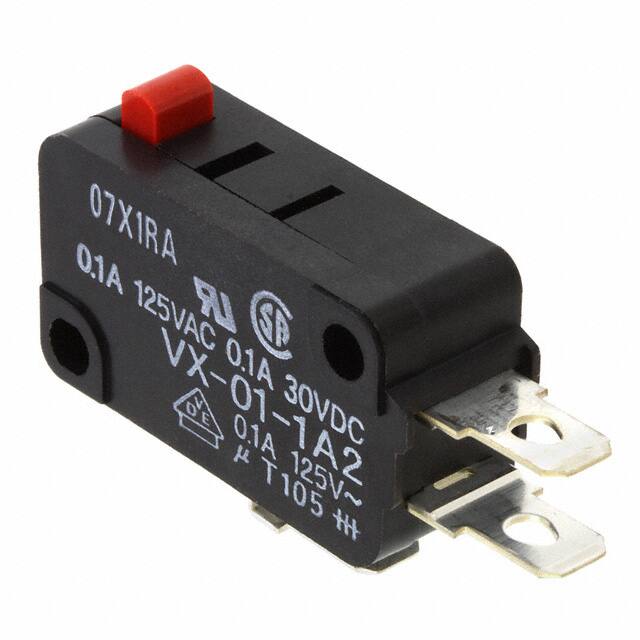

VX-01-1A2

Teknik Özellikler

Contact Currentdcmax

0.1A

Max Voltage Rating Dc

30V

Radyasyon Dayanımı

No

Contact Currentacmax

0.1A

Contact Dc Max Rating R Load

.1A@30VDC

Orientation

Straight

Akım Değeri

100mA

Voltage Rated Dc

30V

Parça Durumu

Active

Contact Current Rating

100mA

ECCN Kodu

EAR99

Montaj Tipi

Chassis Mount

Fabrika Tedarik Süresi

10 Weeks

Voltage Rated Ac

125V

Operating Force

25gf

Switch Type

SNAP ACTING/LIMIT SWITCH

RoHS Durumu

RoHS Compliant

Switch Function

On-Mom

Differential Travel

0.012 (0.3mm)

Body Height

15.9mm

Pretravelmax

1.2 mm

HTS Kodu

8536.50.70.00

Operating Position

0.579 (14.7mm)

Depth

10.3mm

Actuator Type

Round (Pin Plunger)

Release Force

3.059gf

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pretravel

0.047 (1.2mm)

Circuit

SPDT

Kurşunsuz Kodu

yes

Seri

VX

Terminal

Solder

Actuator Travel

2.2 mm

Kılıf / Paket

100

Yayın Yılı

2003

Çalışma Sıcaklığı

-25°C~80°C

Weight

6.2g

Ambalaj

Tray

Ingress Protection

IP40

Contact Ac Max Rating R Load

.1A@125VAC
