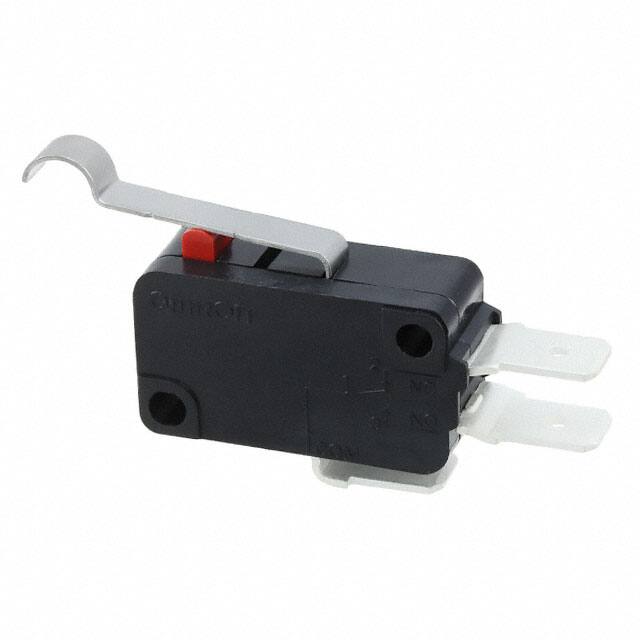

V-214-1C6

Teknik Özellikler

Fabrika Tedarik Süresi

13 Weeks

Electricallife

100,000 Cycles

Yayın Yılı

2002

Contact Currentdcmax

21A

Ingress Protection

IP40

Terminal

Quick Connect

Montaj

Chassis Mount, Screw

Voltage Rated Ac

250V

Circuit

SPDT

Body Height

15.9mm

Max Voltage Rating Ac

250V

Body Breadth

10.3 mm

Mechanical Life

50,000,000 Cycles

Orientation

Straight

ECCN Kodu

EAR99

Contact Materials

Silver

REACH Uyumluluk Kodu

unknown

Differential Travel

0.060 (1.5mm)

Voltage Rated Dc

30V

Switch Type

SNAP ACTING/LIMIT SWITCH

Akım Değeri

14A

Terminal Stili

Quick Connect - 0.250 (6.3mm)

HTS Kodu

8536.50.90.40

Montaj Tipi

Chassis Mount

Actuator Type

Lever, Simulated Roller

Overtravel

0.062 (1.6mm)

Release Force

25gf

Ambalaj

Bulk

Operating Position

0.738 (18.7mm)

Max Voltage Rating Dc

250V

Current Rating Amps

21A AC 600mA DC

Actuator Travel

5.6 mm

Switch Function

On-Mom

Contact Currentacmax

21A

Body Length Or Diameter

27.8mm

Operating Force

250gf

Çalışma Sıcaklığı

-25°C~80°C

Parça Durumu

Active

Seri

V

RoHS Durumu

RoHS Compliant
