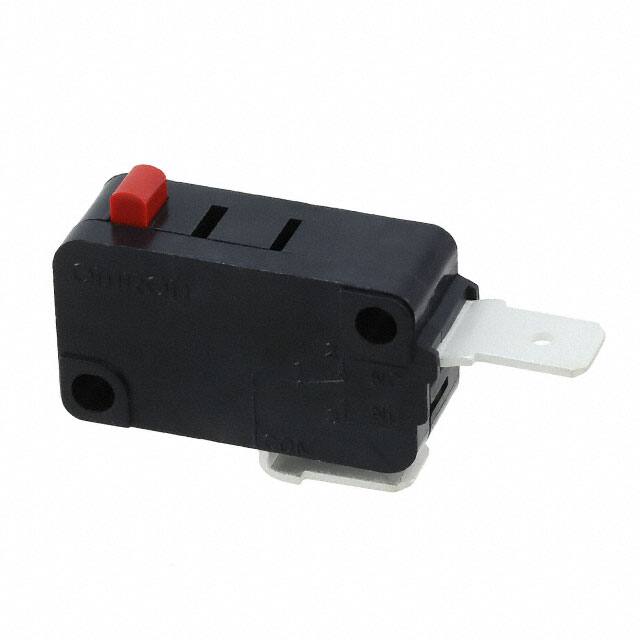

V-21-2C6

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Pretravelmax

1.2 mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pretravel

0.047 (1.2mm)

Seri

V

Body Length Or Diameter

27.8mm

Parça Durumu

Active

Çalışma Sıcaklığı

-25°C~80°C

Operating Force

400gf

Contact Currentacmax

21A

Max Voltage Rating Dc

250V

Operating Position

0.579 (14.7mm)

Actuator Travel

2.2 mm

Switch Function

On-Mom

Current Rating Amps

21A AC 600mA DC

Throw Configuration

SPST

Release Force

80gf

Ambalaj

Bulk

Overtravel

0.040 (1.0mm)

Actuator Type

Round (Pin Plunger)

Montaj Tipi

Chassis Mount

Terminal Stili

Quick Connect - 0.250 (6.3mm)

Akım Değeri

14A

Switch Type

SNAP ACTING/LIMIT SWITCH

HTS Kodu

8536.50.90.40

Differential Travel

0.016 (0.4mm)

REACH Uyumluluk Kodu

unknown

Voltage Rated Dc

30V

Contact Materials

Silver

ECCN Kodu

EAR99

Circuit

SPST-NC

Body Height

15.9mm

Body Breadth

10.3 mm

Mechanical Life

50,000,000 Cycles

Max Voltage Rating Ac

250V

Ingress Protection

IP40

Fabrika Tedarik Süresi

15 Weeks

Electricallife

100,000 Cycles

Yayın Yılı

2004

Contact Currentdcmax

21A
