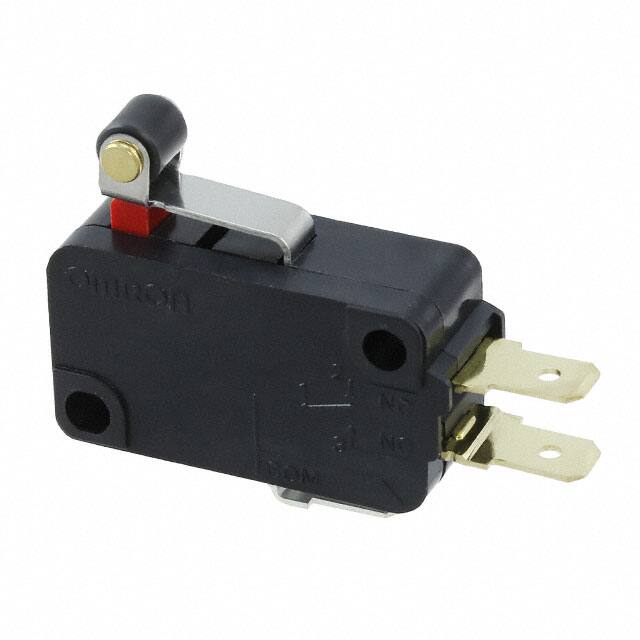

V-165-1C25

Teknik Özellikler

Differential Travel

0.025 (0.6mm)

Voltage Rated Dc

30V

Terminal Stili

Quick Connect - 0.187 (4.7mm)

Akım Değeri

10A

Switch Type

SNAP ACTING/LIMIT SWITCH

HTS Kodu

8536.50.90.40

Montaj Tipi

Chassis Mount

Overtravel

0.030 (0.76mm)

Actuator Type

Lever, Roller

Ingress Protection

IP40

Fabrika Tedarik Süresi

15 Weeks

Electricallife

100,000 Cycles

Yayın Yılı

2002

Contact Currentdcmax

16A

Montaj

Chassis Mount, Screw

Voltage Rated Ac

250V

Terminal

Quick Connect

Body Height

15.9mm

Circuit

SPDT

Mechanical Life

50,000,000 Cycles

Body Breadth

10.3 mm

Max Voltage Rating Ac

250V

Orientation

Straight

ECCN Kodu

EAR99

Contact Materials

Silver

Body Length Or Diameter

27.8mm

Çalışma Sıcaklığı

-25°C~80°C

Parça Durumu

Active

Operating Force

240gf

Seri

V

RoHS Durumu

RoHS Compliant

Pretravelmax

1.6 mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pretravel

0.063 (1.6mm)

Release Force

50gf

Ambalaj

Bulk

Max Voltage Rating Dc

250V

Operating Position

0.815 (20.7mm)

Actuator Travel

2.4 mm

Switch Function

On-Mom
