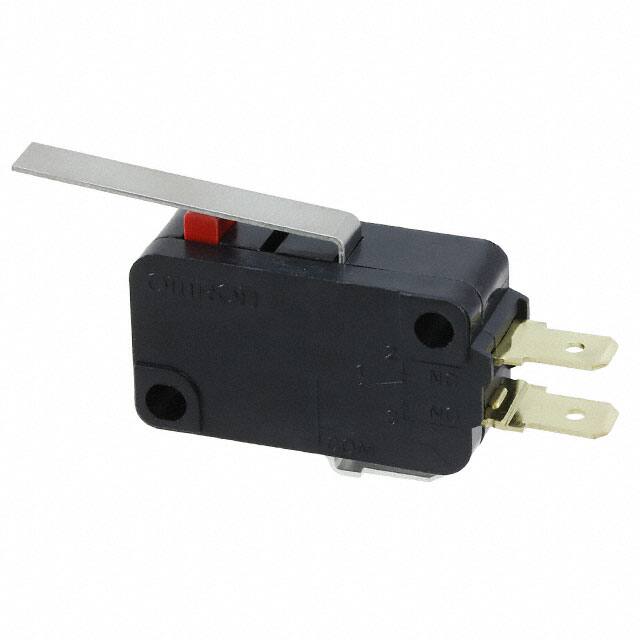

V-162-1C25

Teknik Özellikler

Body Length Or Diameter

27.8mm

Operating Force

125gf

Çalışma Sıcaklığı

-25°C~80°C

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Pretravel

0.157 (4.0mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pretravelmax

4 mm

Seri

V

Release Force

14gf

Ambalaj

Bulk

Contact Currentacmax

16A

Operating Position

0.600 (15.2mm)

Max Voltage Rating Dc

250V

Current Rating Amps

16A AC 600mA DC

Switch Function

On-Mom

Actuator Travel

5.6 mm

Switch Type

SNAP ACTING/LIMIT SWITCH

Akım Değeri

10A

Terminal Stili

Quick Connect - 0.187 (4.7mm)

HTS Kodu

8536.50.90.40

REACH Uyumluluk Kodu

unknown

Differential Travel

0.060 (1.5mm)

Voltage Rated Dc

30V

Actuator Type

Lever, Straight

Overtravel

0.062 (1.6mm)

Montaj Tipi

Chassis Mount

Body Height

15.9mm

Circuit

SPDT

Max Voltage Rating Ac

250V

Mechanical Life

50,000,000 Cycles

Body Breadth

10.3 mm

Fabrika Tedarik Süresi

17 Weeks

Contact Currentdcmax

16A

Yayın Yılı

2011

Electricallife

100,000 Cycles

Ingress Protection

IP40

Terminal

Quick Connect

Voltage Rated Ac

250V

Montaj

Chassis Mount, Panel, Screw
