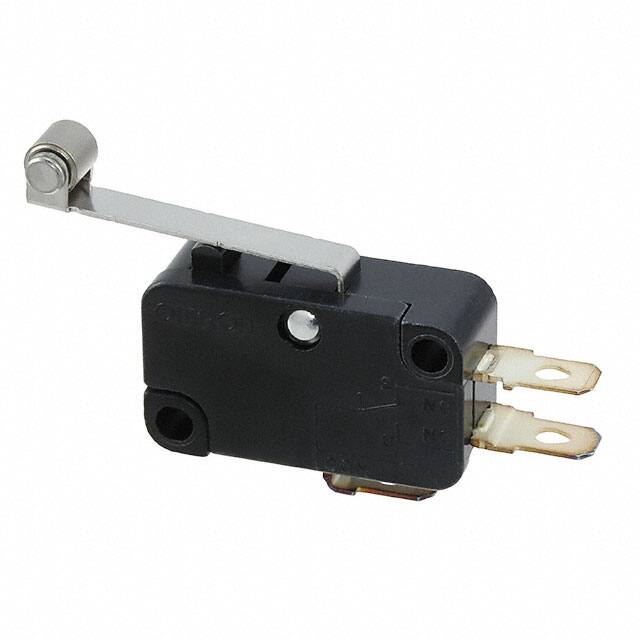

V-156-1A5-T

Teknik Özellikler

Çalışma Sıcaklığı

-25°C~150°C

Parça Durumu

Active

Operating Force

125gf

Pretravelmax

3.3 mm

Max Current Rating

15A

Pretravel

0.157 (4.0mm)

Depth

10.3mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Seri

V

Ambalaj

Bulk

Release Force

14gf

Switch Function

On-Mom

Actuator Material

Polyacetar, Resin, Stainless Steel

Current Rating Amps

15A AC 600mA DC

Max Voltage Rating Dc

250V

Operating Position

0.815 (20.7mm)

HTS Kodu

8536.50.90.40

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Switch Type

SNAP ACTING/LIMIT SWITCH

Akım Değeri

10A

Voltage Rated Dc

30V

Differential Travel

0.060 (1.5mm)

REACH Uyumluluk Kodu

unknown

Uzunluk

49.2mm

Overtravel

0.062 (1.6mm)

Actuator Type

Lever, Roller

Montaj Tipi

Chassis Mount

Mechanical Life

50,000,000 Cycles

Max Voltage Rating Ac

250V

Body Height

15.9mm

Circuit

SPDT

Voltage Rated Ac

250V

Montaj

Chassis Mount, Panel, Screw, Solder

Contact Current Rating

15A

Terminal

Solder

Ingress Protection

IP40

Fabrika Tedarik Süresi

12 Weeks

Electricallife

20,000 Cycles

Yayın Yılı

2004
