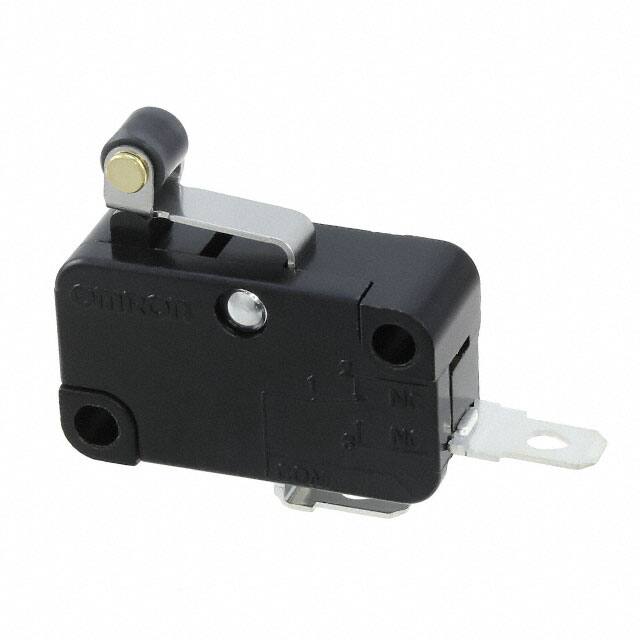

V-155-3A5

Teknik Özellikler

Contact Materials

Silver

Orientation

Straight

Circuit

SPST-NO

Mechanical Life

50,000,000 Cycles

Max Voltage Rating Ac

250V

Ingress Protection

IP40

Fabrika Tedarik Süresi

15 Weeks

Electricallife

100,000 Cycles

Yayın Yılı

2002

Montaj

Chassis Mount, Panel, Screw, Solder

Voltage Rated Ac

250V

Terminal

Solder

Overtravel

0.030 (0.76mm)

Actuator Type

Lever, Roller

Montaj Tipi

Chassis Mount

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Switch Type

SNAP ACTING/LIMIT SWITCH

Akım Değeri

10A

Differential Travel

0.025 (0.6mm)

REACH Uyumluluk Kodu

unknown

Voltage Rated Dc

30V

Max Voltage Rating Dc

250V

Operating Position

0.815 (20.7mm)

Switch Function

Off-Mom

Current Rating Amps

15A AC 600mA DC

Throw Configuration

SPST

Release Force

50gf

Ambalaj

Bulk

RoHS Durumu

RoHS Compliant

Pretravel

0.063 (1.6mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

V

Parça Durumu

Active

Çalışma Sıcaklığı

-25°C~80°C

Operating Force

240gf
