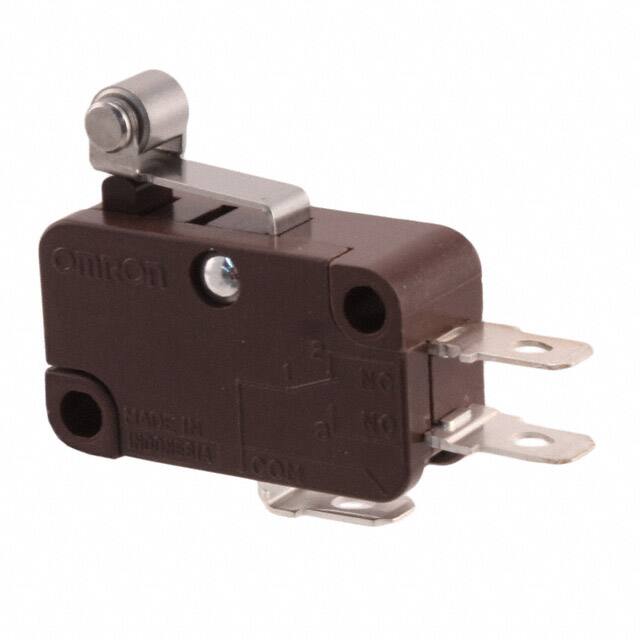

V-155-1A5-T

Teknik Özellikler

Seri

V

RoHS Durumu

RoHS Compliant

Pretravelmax

1.5 mm

Max Current Rating

15A

Pretravel

0.063 (1.6mm)

Depth

10.3mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-25°C~150°C

Parça Durumu

Active

Operating Force

240gf

Max Voltage Rating Dc

250V

Operating Position

0.815 (20.7mm)

Switch Function

On-Mom

Actuator Material

Polyacetar, Resin, Stainless Steel

Current Rating Amps

15A AC 600mA DC

Radyasyon Dayanımı

No

Release Force

50gf

Ambalaj

Bulk

Montaj Tipi

Chassis Mount

Overtravel

0.030 (0.76mm)

Actuator Type

Lever, Roller

Uzunluk

37.8mm

Differential Travel

0.025 (0.6mm)

Voltage Rated Dc

30V

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Switch Type

SNAP ACTING/LIMIT SWITCH

Akım Değeri

10A

HTS Kodu

8536.50.90.40

ECCN Kodu

EAR99

Contact Materials

Silver

Ingress Protection

IP40

Fabrika Tedarik Süresi

17 Weeks

Electricallife

20,000 Cycles

Yayın Yılı

2004

Voltage Rated Ac

250V

Montaj

Chassis Mount, Panel, Screw

Terminal

Solder

Circuit

SPDT

Body Height

15.9mm

Mechanical Life

50,000,000 Cycles
