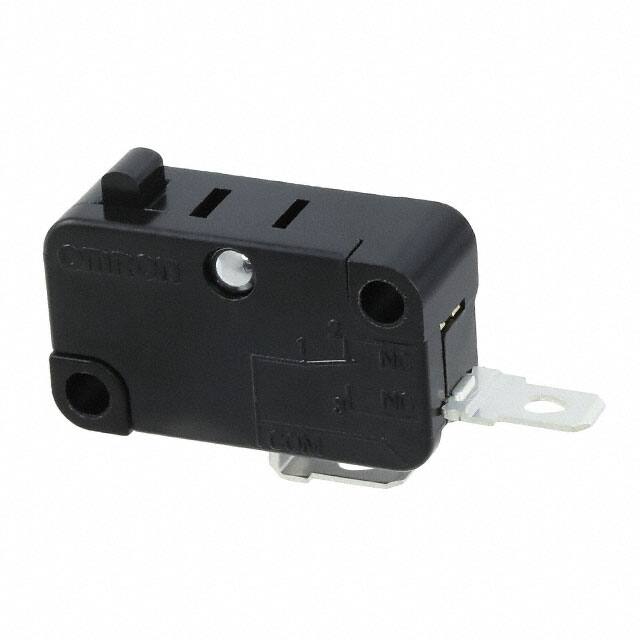

V-15-3A5

Teknik Özellikler

Fabrika Tedarik Süresi

15 Weeks

Electricallife

100,000 Cycles

Yayın Yılı

2002

Ingress Protection

IP40

Terminal

Solder

Contact Current Rating

15A

Montaj

Chassis Mount, Screw

Voltage Rated Ac

250V

Circuit

SPST-NO

Max Voltage Rating Ac

250V

Mechanical Life

50,000,000 Cycles

ECCN Kodu

EAR99

Contact Materials

Silver

REACH Uyumluluk Kodu

unknown

Differential Travel

0.016 (0.4mm)

Voltage Rated Dc

30V

Switch Type

SNAP ACTING/LIMIT SWITCH

Akım Değeri

10A

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Montaj Tipi

Chassis Mount

Actuator Type

Round (Pin Plunger)

Overtravel

0.040 (1.0mm)

Uzunluk

37.8mm

Release Force

50gf

Throw Configuration

SPST

Ambalaj

Bulk

Operating Position

0.579 (14.7mm)

Max Voltage Rating Dc

250V

Current Rating Amps

15A AC 600mA DC

Switch Function

Off-Mom

Operating Force

200gf

Parça Durumu

Active

Çalışma Sıcaklığı

-25°C~80°C

Seri

V

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

10.3mm

Pretravel

0.047 (1.2mm)

Max Current Rating

15A
