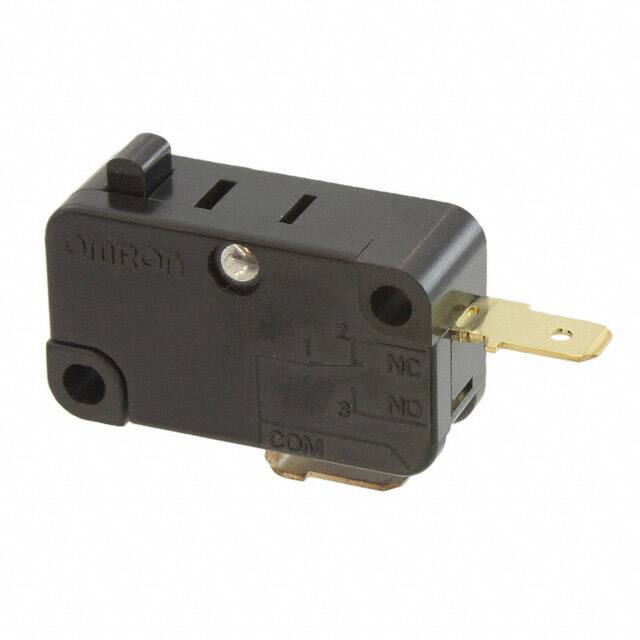

V-15-2C26-K

Teknik Özellikler

Operating Force

400gf

Parça Durumu

Active

Çalışma Sıcaklığı

-25°C~80°C

Seri

V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pretravel

0.047 (1.2mm)

Connector Type

Pin

RoHS Durumu

RoHS Compliant

Ratings

IP40

Ambalaj

Bulk

Weight

6.2g

Release Force

80gf

Throw Configuration

SPST

Current Rating Amps

15A AC 600mA DC

Switch Function

On-Mom

Operating Position

0.579 (14.7mm)

Max Voltage Rating Dc

250V

Voltage Rated Dc

30V

Differential Travel

0.016 (0.4mm)

Akım Değeri

10A

Maks. Çalışma Sıcaklığı

80°C

Terminal Stili

Quick Connect - 0.187 (4.7mm)

Montaj Tipi

Chassis Mount

Min. Çalışma Sıcaklığı

-25°C

Actuator Type

Round (Pin Plunger)

Overtravel

0.040 (1.0mm)

Terminal

Quick Connect

Contact Current Rating

15A

Montaj

Chassis Mount, Panel, Screw

Voltage Rated Ac

250V

Fabrika Tedarik Süresi

14 Weeks

Electricallife

100,000 Cycles

Yayın Yılı

2002

Ingress Protection

IP40

Max Voltage Rating Ac

250V

Mechanical Life

50,000,000 Cycles

Circuit

SPST-NC

Orientation

Straight

Contact Materials

Silver
