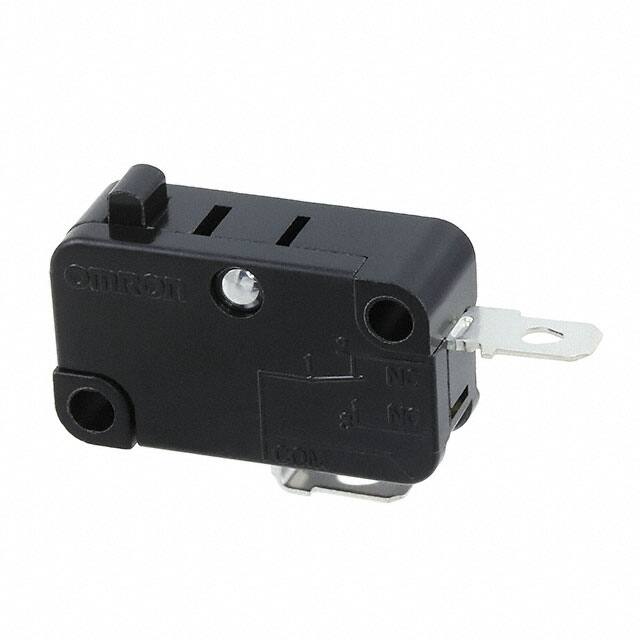

V-15-2A5

Teknik Özellikler

Parça Durumu

Active

Çalışma Sıcaklığı

-25°C~80°C

Operating Force

200gf

Seri

V

Pretravel

0.047 (1.2mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Weight

6.2g

Ambalaj

Bulk

Throw Configuration

SPST

Release Force

50gf

Switch Function

On-Mom

Current Rating Amps

15A AC 600mA DC

Max Voltage Rating Dc

250V

Operating Position

0.579 (14.7mm)

Voltage Rated Dc

30V

Differential Travel

0.016 (0.4mm)

REACH Uyumluluk Kodu

unknown

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Switch Type

SNAP ACTING/LIMIT SWITCH

Akım Değeri

10A

Montaj Tipi

Chassis Mount

Overtravel

0.040 (1.0mm)

Actuator Type

Round (Pin Plunger)

Contact Current Rating

15A

Montaj

Chassis Mount, Panel, Screw, Solder

Voltage Rated Ac

250V

Terminal

Solder

Ingress Protection

IP40

Fabrika Tedarik Süresi

15 Weeks

Electricallife

100,000 Cycles

Yayın Yılı

2002

Mechanical Life

50,000,000 Cycles

Max Voltage Rating Ac

250V

Circuit

SPST-NC

ECCN Kodu

EAR99

Orientation

Straight

Contact Materials

Silver
